📝 FedOps XAI Guide

This FL XAI explanation describes a Grad-CAM (XAI) integration for the FedOps MNIST example, which supports single-channel MNIST input and automatically generates heatmaps during local (client-side) federated evaluation.

Baseline

- Baseline
    - client_main.py
    - client_mananger_main.py
    - server_main.py
    - models.py
    - data_preparation.py
    - requirements.txt (for server)
    - conf
        - config.yaml
    - **xai_utils.py**

Step

First，Start by cloning the FedOps（Place it cloning in the local location）

git clone https://github.com/gachon-CCLab/FedOps.git \
&& mv FedOps/silo/examples/torch/MNIST-XAI . \
&& rm -rf FedOps

---

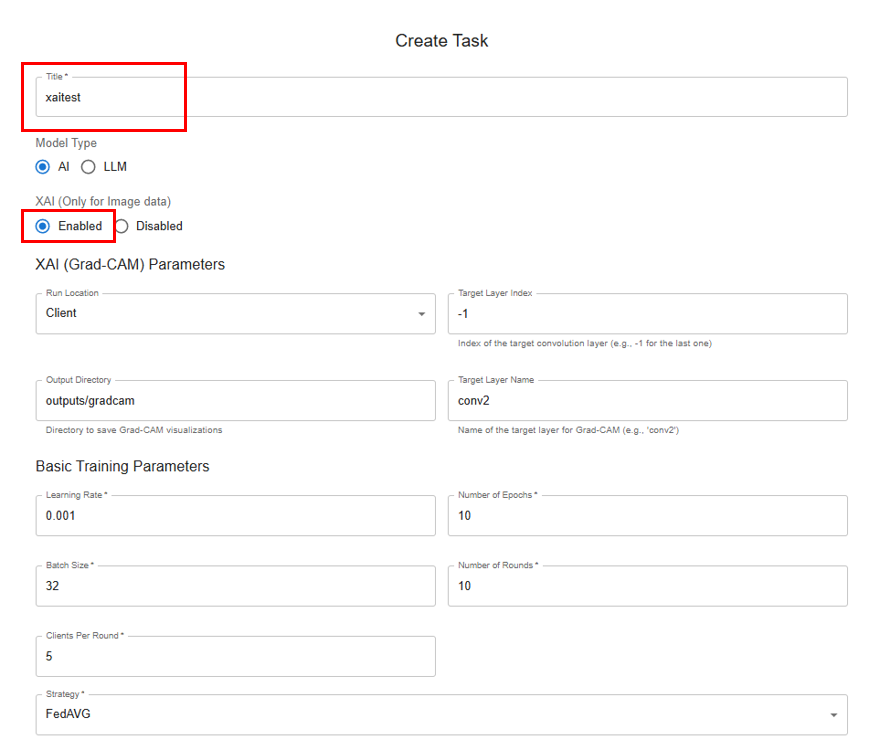

Create Task: The task name is required (e.g., xaitest). Since this instance belongs to a general machine learning or deep learning task, select AI and **set **XAI options in enabled. Keep all subsequent options as default, and finally, choose FedAvg as the federated aggregation strategy.

XAI (Only for Image data): Select Enabled.

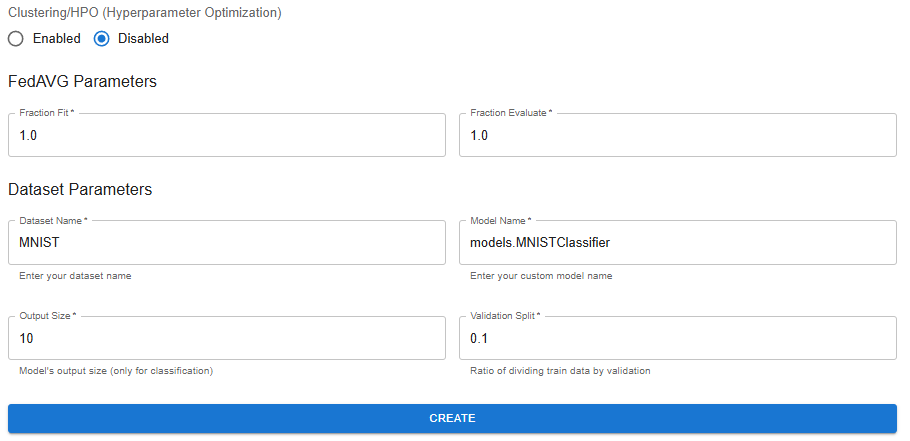

Keep all other parameters as default, then click the CREATE button at the bottom to generate the task instance. The new task will appear in the task list.

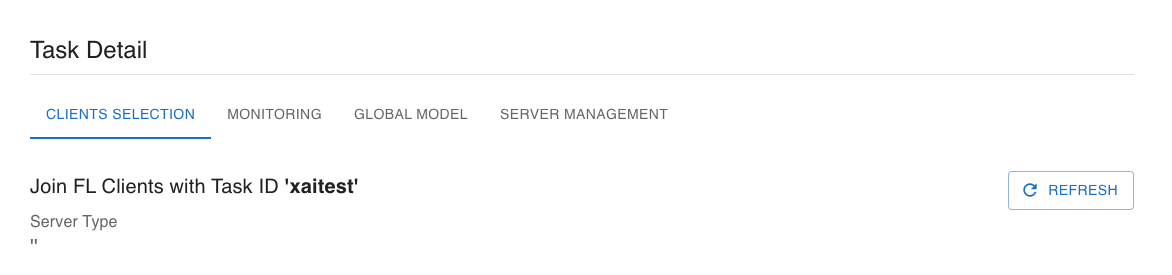

Enter the server management of the created task.

In Server Management, configure Resource Scaling (the default values are CPU: 1 and Memory: 2 Gi, so modify them if necessary).

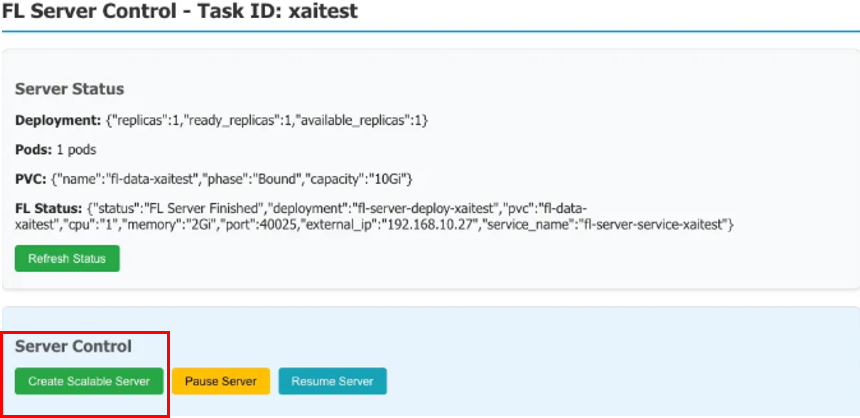

Then, click Create Scalable Server to create the server pod. Once created, this dashboard will show pod and PVC status as in the image above.

（ {"replicas":1,"ready_replicas":1,"available_replicas":1} is normal status）

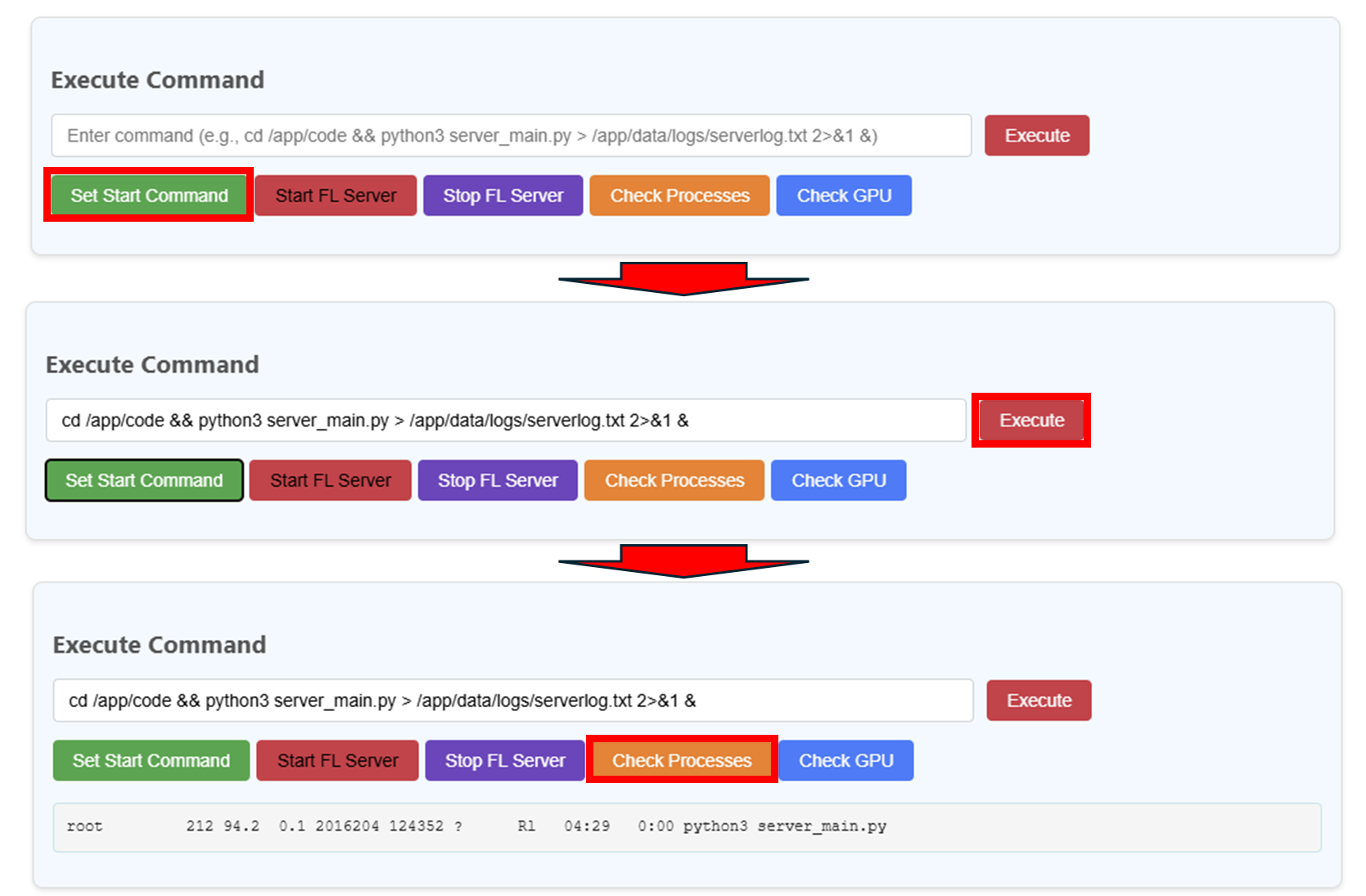

Click Set Start Command to prepare the command for running the FL server. (Although you can also start the server by clicking Start FL Server, it will only run the server without saving logs. Therefore, it is recommended to use Set Start Command to review and confirm the command before execution.) Once the command is ready, click Execute to run it. Then, click Check Process to verify that the FL server process is running.

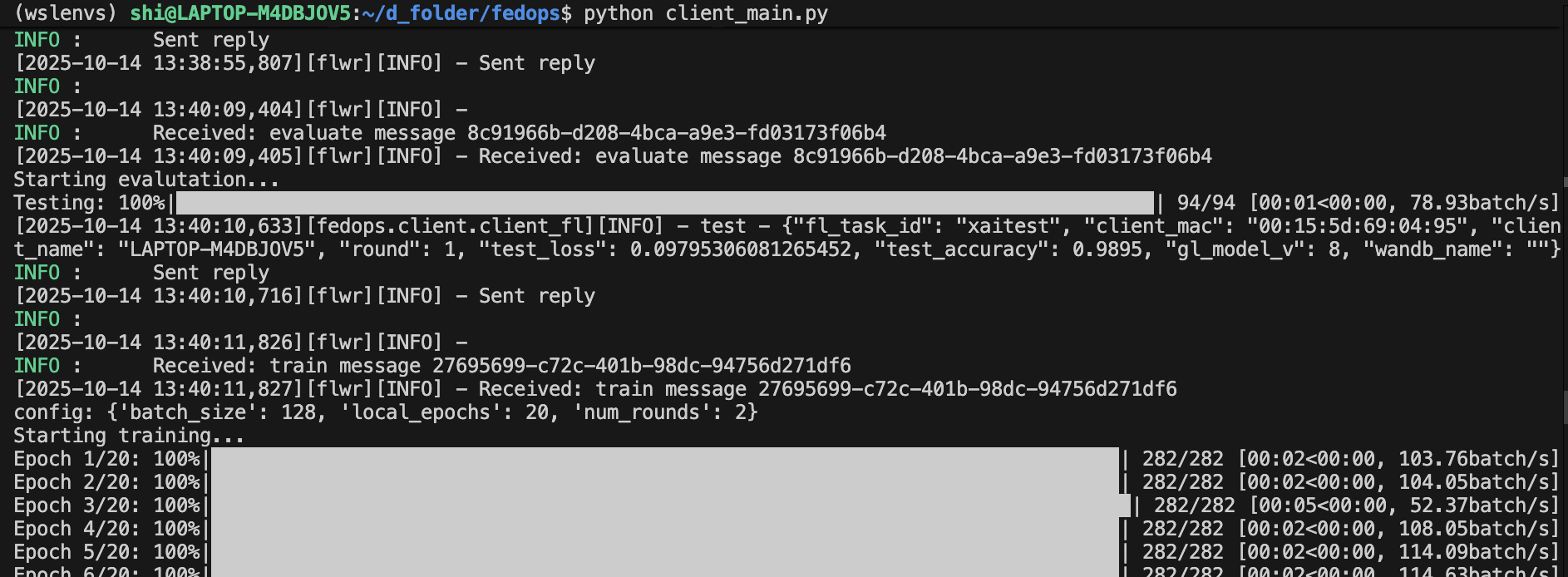

Run the clients. - Run client_main.py and client_manager_main.py - Then, in the terminal to confirm whether it runs correctly.

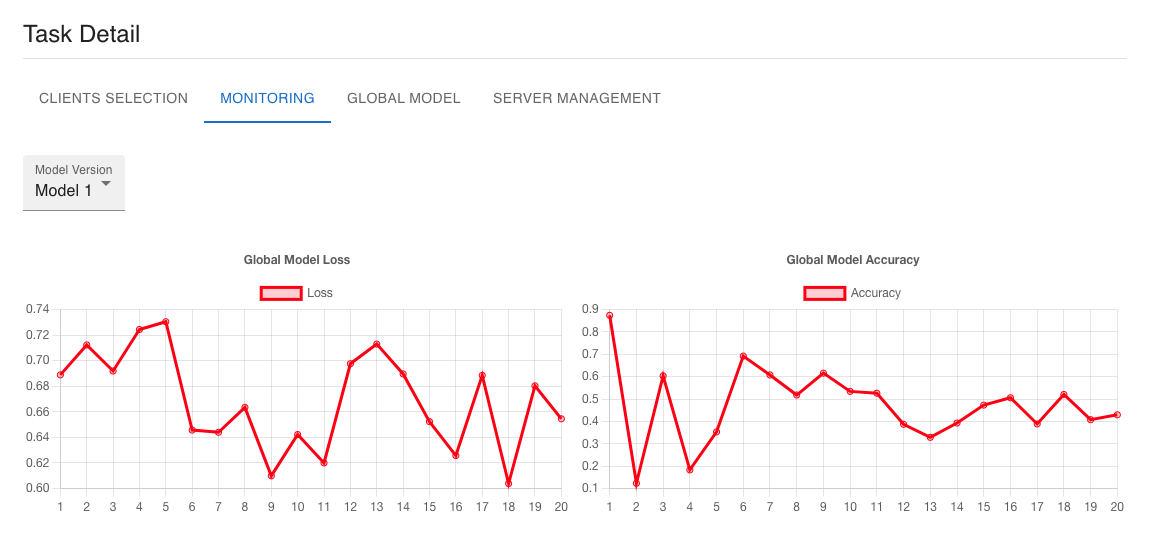

The monitoring page can confirm the global results

After each client completes local training, if the XAI feature is enabled, visualization results will be automatically saved in this directory.

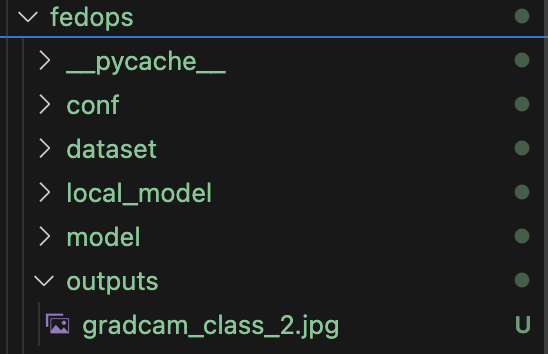

The file naming convention is usually gradcam_class_<class_lable>.jpg

You can open this directory (/outputs/) locally to view and analyze the model’s interpretability visualization results.

Error solutions

• if you encounter an issue related to client/app.py do these changes.

  with fedops 1.1.30.4 version i had to modify client/app.py and client/client_fl.py as below to make it work woth mnist-xai.

  just paste the script below in vscode client terminal and it will automatically find the file and modifies client/app.py .

    ```jsx
    # Locate app.py dynamically, backup, overwrite with given content, then verify
    APP_PATH="$(python - <<'PY'
    import importlib, inspect, pathlib
    m = importlib.import_module("fedops.client.app")
    p = pathlib.Path(inspect.getsourcefile(m)).resolve()
    print(p)
    PY
    )"

    echo "[INFO] app.py -> $APP_PATH"

    # Backup first
    cp "$APP_PATH" "${APP_PATH}.bak.$(date +%s)" && echo "[INFO] Backup OK"

    # Overwrite with your content
    cat > "$APP_PATH" <<'PYCODE'
    #client/app.py
    import logging, json
    import socket
    import time
    from fastapi import FastAPI, BackgroundTasks
    import asyncio
    import uvicorn
    from datetime import datetime

    from . import client_utils
    from . import client_fl
    from . import client_wandb
    from . import client_api
    from ..utils.fedxai.gradcam import MNISTGradCAM

    class FLClientTask():
        def __init__(self, cfg, fl_task=None, xai=False):
            self.app = FastAPI()
            self.status = client_utils.FLClientStatus()
            self.cfg = cfg
            self.client_port = 8003
            self.task_id = cfg.task_id
            self.dataset_name = cfg.dataset.name
            self.output_size = cfg.model.output_size
            self.validation_split = cfg.dataset.validation_split
            self.wandb_use = cfg.wandb.use
            self.model_type = cfg.model_type
            self.model = fl_task["model"]
            self.model_name = fl_task["model_name"]
            self.xai = xai

            self.status.client_name = socket.gethostname()
            self.status.task_id = self.task_id
            self.status.client_mac = client_utils.get_mac_address()

            logging.info(f'init model_type: {self.model_type}')

            if self.wandb_use:
                self.wandb_key = cfg.wandb.key
                self.wandb_account = cfg.wandb.account
                self.wandb_project = cfg.wandb.project
                self.wandb_name = f"{self.status.client_name}-v{self.status.gl_model}({datetime.now()})"


            if self.model_type=="Tensorflow":
                self.x_train = fl_task["x_train"]
                self.x_test = fl_task["x_test"]
                self.y_train = fl_task["y_train"]
                self.y_test = fl_task["y_test"]

            elif self.model_type == "Pytorch":
                self.train_loader = fl_task["train_loader"]
                self.val_loader = fl_task["val_loader"]
                self.test_loader = fl_task["test_loader"]
                self.train_torch = fl_task["train_torch"]
                self.test_torch = fl_task["test_torch"]

            elif self.model_type == "Huggingface":
                self.trainset = fl_task["trainset"]
                self.tokenizer = fl_task["tokenizer"]
                self.finetune_llm = fl_task["finetune_llm"]
                self.data_collator = fl_task["data_collator"]
                self.formatting_prompts_func = fl_task["formatting_prompts_func"]


        async def fl_client_start(self):
            logging.info('FL learning ready')

            logging.info(f'fl_task_id: {self.task_id}')
            logging.info(f'dataset: {self.dataset_name}')
            logging.info(f'output_size: {self.output_size}')
            logging.info(f'validation_split: {self.validation_split}')
            logging.info(f'model_type: {self.model_type}')

            """
            Before running this code,
            set wandb api and account in the config.yaml
            """
            if self.wandb_use:
                logging.info(f'wandb_key: {self.wandb_key}')
                logging.info(f'wandb_account: {self.wandb_account}')
                # Set the name in the wandb project
                # Login and init wandb project
                wandb_run = client_wandb.start_wandb(self.wandb_key, self.wandb_project, self.wandb_name)
            else:
                wandb_run=None
                self.wandb_name=''

            # Initialize wandb_config, client object
            wandb_config = {}
            # client = None

            try:
                loop = asyncio.get_event_loop()
                if self.model_type == "Tensorflow":
                    client = client_fl.FLClient(model=self.model, x_train=self.x_train, y_train=self.y_train, x_test=self.x_test,
                                                y_test=self.y_test,
                                                validation_split=self.validation_split, fl_task_id=self.task_id, client_mac=self.status.client_mac,
                                                client_name=self.status.client_name,
                                                fl_round=1, gl_model=self.status.gl_model, wandb_use=self.wandb_use, wandb_name=self.wandb_name,
                                                wandb_run=wandb_run, model_name=self.model_name, model_type=self.model_type)

                elif self.model_type == "Pytorch":
                    client = client_fl.FLClient(model=self.model, validation_split=self.validation_split,
                                                fl_task_id=self.task_id, client_mac=self.status.client_mac, client_name=self.status.client_name,
                                                fl_round=1, gl_model=self.status.gl_model, wandb_use=self.wandb_use,wandb_name=self.wandb_name,
                                                wandb_run=wandb_run, model_name=self.model_name, model_type=self.model_type,
                                                train_loader=self.train_loader, val_loader=self.val_loader, test_loader=self.test_loader,
                                                cfg=self.cfg, train_torch=self.train_torch, test_torch=self.test_torch)

                elif self.model_type == "Huggingface":
                    client = client_fl.FLClient(
                        model=self.model,
                        validation_split=self.validation_split,
                        fl_task_id=self.task_id,
                        client_mac=self.status.client_mac,
                        client_name=self.status.client_name,
                        fl_round=1,
                        gl_model=self.status.gl_model,
                        wandb_use=self.wandb_use,
                        wandb_name=self.wandb_name,
                        wandb_run=wandb_run,
                        model_name=self.model_name,
                        model_type=self.model_type,
                        trainset=self.trainset,
                        tokenizer=self.tokenizer,
                        finetune_llm=self.finetune_llm,
                        formatting_prompts_func=self.formatting_prompts_func,
                        data_collator=self.data_collator,
                    )

                # Check data fl client data status in the wandb
                # label_values = [[i, self.y_label_counter[i]] for i in range(self.output_size)]
                # logging.info(f'label_values: {label_values}')

                # client_start object
                client_start = client_fl.flower_client_start(self.status.server_IP, client)

                # FL client start time
                fl_start_time = time.time()

                # Run asynchronously FL client
                await loop.run_in_executor(None, client_start)

                logging.info('fl learning finished')

                # FL client end time
                fl_end_time = time.time() - fl_start_time

                # Grad-CAM 설명 생성
                if self.xai:
                    try:
                        logging.info("Generating Grad-CAM explanations...")
                        gradcam = MNISTGradCAM(model=self.model)  # Replace "layer_name" with the desired layer
                        input_data = self.x_test[:1]  # Use a sample input for visualization
                        cam_output = gradcam.generate(input_data)

                        # 저장 또는 시각화
                        gradcam.save(cam_output, "gradcam_output.png")  # 저장 경로 지정
                        logging.info("Grad-CAM explanation saved as gradcam_output.png")
                    except Exception as e:
                        logging.error(f"Error generating Grad-CAM explanations: {e}")

                # Wandb 로그 추가 (옵션)
                # if self.wandb_use:
                #     wandb_run.log({"gradcam_output": wandb.Image("gradcam_output.png")})


                if self.wandb_use:
                    wandb_config = {"dataset": self.dataset_name, "model_architecture": self.model_name}
                    wandb_run.config.update(wandb_config, allow_val_change=True)

                    # client_wandb.data_status_wandb(wandb_run, label_values)

                    # Wandb log(Client round end time)
                    wandb_run.log({"operation_time": fl_end_time, "gl_model_v": self.status.gl_model},step=self.status.gl_model)
                    # close wandb
                    wandb_run.finish()

                    # Get client system result from wandb and send it to client_performance pod
                    client_wandb.client_system_wandb(self.task_id, self.status.client_mac, self.status.client_name,
                                                     self.status.gl_model, self.wandb_name, self.wandb_account, self.wandb_project)

                client_all_time_result = {"fl_task_id": self.task_id, "client_mac": self.status.client_mac, "client_name": self.status.client_name,
                                          "operation_time": fl_end_time,"gl_model_v": self.status.gl_model}
                json_result = json.dumps(client_all_time_result)
                logging.info(f'client_operation_time - {json_result}')

                # Send client_time_result to client_performance pod
                client_api.ClientServerAPI(self.task_id).put_client_time_result(json_result)

                # Delete client object
                del client

                # Complete Client training
                self.status.client_start = await client_utils.notify_fin()
                logging.info('FL Client Learning Finish')

            except Exception as e:
                logging.exception('[E][PC0002] learning')
                self.status.client_fail = True
                self.status.client_start = await client_utils.notify_fail()
                raise e

        def start(self):
            # Configure routes, endpoints, and other FastAPI-related logic here
            # Example:
            @self.app.get('/online')
            async def get_info():

                return self.status

            # asynchronously start client
            @self.app.post("/start")
            async def client_start_trigger(background_tasks: BackgroundTasks):

                # client_manager address
                client_res = client_api.ClientMangerAPI().get_info()

                # # # latest global model version
                last_gl_model_v = client_res.json()['GL_Model_V']

                # # next global model version
                self.status.gl_model = last_gl_model_v
                # self.status.next_gl_model = 1

                logging.info('bulid model')

                logging.info('FL start')
                self.status.client_start = True

                # get the FL server IP
                self.status.server_IP = client_api.ClientServerAPI(self.task_id).get_port()
                # self.status.server_IP = "0.0.0.0:8080"

                # start FL Client
                background_tasks.add_task(self.fl_client_start)

                return self.status

            try:
                # create client api => to connect client manager
                uvicorn.run(self.app, host='0.0.0.0', port=self.client_port)

            except Exception as e:
                # Handle any exceptions that occur during the execution
                logging.error(f'An error occurred during execution: {e}')

            finally:
                # FL client out
                client_api.ClientMangerAPI().get_client_out()
                logging.info(f'{self.status.client_name};{self.status.client_mac}-client close')
                if self.xai == True:
                    # close xai
                    GradCAM.close_xai()


  just paste the script below in vscode client terminal and it will automatically find the file and modifies client/client_fl.py .

    # Locate client_fl.py dynamically, backup, overwrite with given content, then verify
    CLIENT_FL_PATH="$(python - <<'PY'
    import importlib, inspect, pathlib
    m = importlib.import_module("fedops.client.client_fl")
    p = pathlib.Path(inspect.getsourcefile(m)).resolve()
    print(p)
    PY
    )"

    echo "[INFO] client_fl.py -> $CLIENT_FL_PATH"

    # Backup first
    cp "$CLIENT_FL_PATH" "${CLIENT_FL_PATH}.bak.$(date +%s)" && echo "[INFO] Backup OK"

    # Overwrite with your content
    cat > "$CLIENT_FL_PATH" <<'PYCODE'
    #/home/ccl/anaconda3/envs/fedops_fedmm_env/lib/python3.9/site-packages/fedops/client/client_fl.py

    from collections import OrderedDict
    import json, logging
    import flwr as fl
    import time
    import os
    from functools import partial
    from . import client_api
    from . import client_utils

    # set log format
    handlers_list = [logging.StreamHandler()]

    if "MONITORING" in os.environ:
        if os.environ["MONITORING"] == '1':
            handlers_list.append(logging.FileHandler('./fedops/fl_client.log'))
        else:
            pass

    logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s",
                        handlers=handlers_list)

    logger = logging.getLogger(__name__)
    import warnings
    import torch

    # Avoid warnings
    os.environ["TOKENIZERS_PARALLELISM"] = "true"
    os.environ["RAY_DISABLE_DOCKER_CPU_WARNING"] = "1"
    warnings.filterwarnings("ignore", category=UserWarning)

    class FLClient(fl.client.NumPyClient):

        def __init__(self, model, validation_split, fl_task_id, client_mac, client_name, fl_round,gl_model, wandb_use, wandb_name,
                     wandb_run=None, model_name=None, model_type=None, x_train=None, y_train=None, x_test=None, y_test=None,
                     train_loader=None, val_loader=None, test_loader=None, cfg=None, train_torch=None, test_torch=None,
                     finetune_llm=None, trainset=None, tokenizer=None, data_collator=None, formatting_prompts_func=None, num_rounds=None):

            self.cfg = cfg
            self.model_type = model_type
            self.model = model
            self.validation_split = validation_split
            self.fl_task_id = fl_task_id
            self.client_mac = client_mac
            self.client_name = client_name
            self.fl_round = fl_round
            self.gl_model = gl_model
            self.model_name = model_name
            self.wandb_use = wandb_use
            self.wandb_run = wandb_run
            self.wandb_name = wandb_name

            if self.model_type == "Tensorflow":
                self.x_train, self.y_train = x_train, y_train
                self.x_test, self.y_test = x_test, y_test

            elif self.model_type == "Pytorch":
                self.train_loader = train_loader
                self.val_loader = val_loader
                self.test_loader = test_loader
                self.train_torch = train_torch
                self.test_torch = test_torch

            elif self.model_type == "Huggingface":
                self.trainset = trainset
                self.tokenizer = tokenizer
                self.finetune_llm = finetune_llm
                self.data_collator = data_collator
                self.formatting_prompts_func = formatting_prompts_func

        def set_parameters(self, parameters):
            if self.model_type in ["Tensorflow"]:
                raise Exception("Not implemented")

            elif self.model_type in ["Pytorch"]:
                # Use ALL keys in deterministic order — must match server
                keys = list(self.model.state_dict().keys())
                assert len(keys) == len(parameters), (
                    f"client mismatch: {len(keys)} model keys vs {len(parameters)} arrays from server"
                )
                state_dict = OrderedDict((k, torch.tensor(v)) for k, v in zip(keys, parameters))
                # If your classifier head differs locally, switch strict=True -> strict=False
                self.model.load_state_dict(state_dict, strict=True)

            elif self.model_type in ["Huggingface"]:
                client_utils.set_parameters_for_llm(self.model, parameters)

        def get_parameters(self):
            """Get parameters of the local model."""
            if self.model_type == "Tensorflow":
                raise Exception("Not implemented (server-side parameter initialization)")

            elif self.model_type == "Pytorch":
                # Return ALL params in sorted(key) order — must match server
                sd = self.model.state_dict()
                return [v.detach().cpu().numpy() for _, v in sd.items()]

            elif self.model_type == "Huggingface":
                return client_utils.get_parameters_for_llm(self.model)

        def get_properties(self, config):
            """Get properties of client."""
            raise Exception("Not implemented")

        def fit(self, parameters, config):
            """Train parameters on the locally held training set."""

            print(f"config: {config}")
            # Get hyperparameters for this round
            batch_size: int = config["batch_size"]
            epochs: int = config["local_epochs"]
            num_rounds: int = config["num_rounds"]

            if self.wandb_use:
                # add wandb config
                self.wandb_run.config.update({"batch_size": batch_size, "epochs": epochs, "num_rounds": num_rounds}, allow_val_change=True)

            # start round time
            round_start_time = time.time()

            # model path for saving local model
            model_path = f'./local_model/{self.fl_task_id}/{self.model_name}_local_model_V{self.gl_model}'

            # Initialize results
            results = {}

            # Training Tensorflow
            if self.model_type == "Tensorflow":
                # Update local model parameters
                self.model.set_weights(parameters)

                # Train the model using hyperparameters from config
                history = self.model.fit(
                    self.x_train,
                    self.y_train,
                    batch_size,
                    epochs,
                    validation_split=self.validation_split,
                )

                train_loss = history.history["loss"][len(history.history["loss"])-1]
                train_accuracy = history.history["accuracy"][len(history.history["accuracy"])-1]
                results = {
                    "train_loss": train_loss,
                    "train_accuracy": train_accuracy,
                    "val_loss": history.history["val_loss"][len(history.history["val_loss"])-1],
                    "val_accuracy": history.history["val_accuracy"][len(history.history["val_accuracy"])-1],
                }

                # Return updated model parameters
                parameters_prime = self.model.get_weights()
                num_examples_train = len(self.x_train)

                # save local model
                self.model.save(model_path+'.h5')

            # Training Torch
            elif self.model_type == "Pytorch":
                # Update local model parameters
                self.set_parameters(parameters)

                trained_model = self.train_torch(self.model, self.train_loader, epochs, self.cfg)

                train_loss, train_accuracy, train_metrics = self.test_torch(trained_model, self.train_loader, self.cfg)
                val_loss, val_accuracy, val_metrics = self.test_torch(trained_model, self.val_loader, self.cfg)

                if train_metrics!=None:
                    train_results = {"loss": train_loss,"accuracy": train_accuracy,**train_metrics}
                    val_results = {"loss": val_loss,"accuracy": val_accuracy, **val_metrics}
                else:
                    train_results = {"loss": train_loss,"accuracy": train_accuracy}
                    val_results = {"loss": val_loss,"accuracy": val_accuracy}

                # Prefixing keys with 'train_' and 'val_'
                train_results_prefixed = {"train_" + key: value for key, value in train_results.items()}
                val_results_prefixed = {"val_" + key: value for key, value in val_results.items()}

                # Return updated model parameters
                parameters_prime = self.get_parameters()
                num_examples_train = len(self.train_loader)

                # Save model weights
                torch.save(self.model.state_dict(), model_path+'.pth')

            elif self.model_type == "Huggingface":
                train_results_prefixed = {}
                val_results_prefixed = {}

                # Update local model parameters: LoRA Adapter params
                self.set_parameters(parameters)
                trained_model = self.finetune_llm(self.model, self.trainset, self.tokenizer, self.formatting_prompts_func, self.data_collator)
                parameters_prime = self.get_parameters()
                num_examples_train = len(self.trainset)

                train_loss = results["train_loss"] if "train_loss" in results else None
                results = {"train_loss": train_loss}

                model_save_path = model_path
                self.model.save_pretrained(model_save_path)
                # 선택적으로 tokenizer도 함께 저장
                if self.tokenizer is not None:
                    self.tokenizer.save_pretrained(model_save_path)

            # send metrics back
            # If not set in TF branch, define empty dicts to avoid NameError
            if 'train_results_prefixed' not in locals():
                train_results_prefixed = {}
            if 'val_results_prefixed' not in locals():
                val_results_prefixed = {}
            results_payload = {**train_results_prefixed, **val_results_prefixed}

            return parameters_prime, num_examples_train, results_payload

    def flower_client_start(server_address, client):
        fl.client.start_numpy_client(server_address=server_address, client=client)
