💡 How to run a FL Client using the MNIST example
- Install the fedops library on the client environment. (A computer environment where your data is collected and you can run Python - Python version 3.13 under)
```bash
pip install fedops
```
- **Prepare the project directory structure as follows.**
The files required to run the client should be organized like this.
```
app/code/
├── client_main.py
├── client_manager_main.py
├── data_preparation.py
├── models.py
└── conf
└── config.yaml
```
models.pyanddata_preparation.pymust contain the same code as the files on the FL server. Below is theconfig.yamlrequired to run the client.config.yamlshould located atconf/config.yamlIn the task_id in config.yaml, enter the task id you want to connect
# Common random_seed: 42 learning_rate: 0.001 # Input model's learning rate model_type: 'Pytorch' # This value should be maintained model: _target_: models.MNISTClassifier # Input your custom model output_size: 10 # Input your model's output size (only classification) dataset: name: 'MNIST' # Input your data name validation_split: 0.2 # Ratio of dividing train data by validation # client task_id: 'task_id' # Input your Task Name that you register in FedOps Website wandb: use: false # Whether to use wandb key: 'your wandb api key' # Input your wandb api key account: 'your wandb account' # Input your wandb account project: '${dataset.name}_${task_id}' # server num_epochs: 1 # number of local epochs batch_size: 128 num_rounds: 2 # Number of rounds to perform clients_per_round: 1 # Number of clients participating in the round server: strategy: _target_: flwr.server.strategy.FedAvg # aggregation algorithm (defalut: fedavg) fraction_fit: 0.00001 # because we want the number of clients to sample on each round to be solely defined by min_fit_clients fraction_evaluate: 0.000001 # because we want the number of clients to sample on each round to be solely defined by min_fit_clients min_fit_clients: ${clients_per_round} # Minimum number of clients to participate in training min_available_clients: ${clients_per_round} # Minimum number of clients to participate in a round min_evaluate_clients: ${clients_per_round} # Minimum number of clients to participate in evaluation'client_main.py' import random import hydra from hydra.utils import instantiate import numpy as np import torch import data_preparation import models from fedops.client import client_utils from fedops.client.app import FLClientTask import logging from omegaconf import DictConfig, OmegaConf @hydra.main(config_path="./conf", config_name="config", version_base=None) def main(cfg: DictConfig) -> None: # set log format handlers_list = [logging.StreamHandler()] logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s", handlers=handlers_list) logger = logging.getLogger(__name__) # Set random_seed random.seed(cfg.random_seed) np.random.seed(cfg.random_seed) torch.manual_seed(cfg.random_seed) print(OmegaConf.to_yaml(cfg)) """ Client data load function After setting model method in data_preparation.py, call the model method. """ train_loader, val_loader, test_loader= data_preparation.load_partition(dataset=cfg.dataset.name, validation_split=cfg.dataset.validation_split, batch_size=cfg.batch_size) logger.info('data loaded') """ Client local model build function Set init local model After setting model method in models.py, call the model method. """ # torch model model = instantiate(cfg.model) model_type = cfg.model_type # Check tensorflow or torch model model_name = type(model).__name__ train_torch = models.train_torch() # set torch train test_torch = models.test_torch() # set torch test # Local model directory for saving local models task_id = cfg.task_id # FL task ID local_list = client_utils.local_model_directory(task_id) # If you have local model, download latest local model if local_list: logger.info('Latest Local Model download') # If you use torch model, you should input model variable in model parameter model = client_utils.download_local_model(model_type=model_type, task_id=task_id, listdir=local_list, model=model) # Don't change "registration" registration = { "train_loader" : train_loader, "val_loader" : val_loader, "test_loader" : test_loader, "model" : model, "model_name" : model_name, "train_torch" : train_torch, "test_torch" : test_torch } fl_client = FLClientTask(cfg, registration) fl_client.start() if __name__ == "__main__": main()'client_manager_main.py' from pydantic.main import BaseModel import logging import uvicorn from fastapi import FastAPI import asyncio import json from datetime import datetime import requests import os import sys import yaml import uuid import socket from typing import Optional handlers_list = [logging.StreamHandler()] if "MONITORING" in os.environ: if os.environ["MONITORING"] == '1': handlers_list.append(logging.FileHandler('./fedops/client_manager.log')) else: pass logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s", handlers=handlers_list) logger = logging.getLogger(__name__) app = FastAPI() # 날짜를 폴더로 설정 global today_str today = datetime.today() today_str = today.strftime('%Y-%m-%d') global inform_SE def get_mac_address(): mac = uuid.UUID(int=uuid.getnode()).hex[-12:] return ":".join([mac[i:i + 2] for i in range(0, 12, 2)]) def get_hostname(): return socket.gethostname() class FLTask(BaseModel): FL_task_ID: Optional[str] = None Device_mac: Optional[str] = None Device_hostname: Optional[str] = None Device_online: Optional[bool] = None Device_training: Optional[bool] = None class manager_status(BaseModel): global today_str, inform_SE FL_client: str = '0.0.0.0:8003' if len(sys.argv) == 1: FL_client = 'localhost:8003' else: FL_client = 'fl-client:8003' server_ST: str = 'ccl.gachon.ac.kr:40019' server: str = 'ccl.gachon.ac.kr' S3_bucket: str = 'fl-gl-model' s3_ready: bool = False GL_Model_V: int = 0 # model version FL_ready: bool = False client_online: bool = False # flower client online client_training: bool = False # flower client learning task_id: str = '' task_status: FLTask = None client_mac: str = get_mac_address() client_name: str = get_hostname() inform_SE = f'http://{server_ST}/FLSe/' manager = manager_status() @app.on_event("startup") def startup(): ##### S0 ##### # get_server_info() ##### S1 ##### loop = asyncio.get_event_loop() loop.set_debug(True) loop.create_task(check_flclient_online()) loop.create_task(health_check()) # loop.create_task(register_client()) loop.create_task(start_training()) # fl server occured error def fl_server_closed(): global manager try: requests.put(inform_SE + 'FLSeClosed/' + manager.task_id, params={'FLSeReady': 'false'}) logging.info('server status FLSeReady => False') except Exception as e: logging.error(f'fl_server_closed error: {e}') @app.get("/trainFin") def fin_train(): global manager logging.info('fin') manager.client_training = False manager.FL_ready = False fl_server_closed() return manager @app.get("/trainFail") def fail_train(): global manager logging.info('Fail') manager.client_training = False manager.FL_ready = False fl_server_closed() return manager @app.get('/info') def get_manager_info(): return manager @app.get('/flclient_out') def flclient_out(): manager.client_online = False manager.client_training = False return manager def async_dec(awaitable_func): async def keeping_state(): while True: try: # logging.debug(str(awaitable_func.__name__) + '함수 시작') # print(awaitable_func.__name__, '함수 시작') await awaitable_func() # logging.debug(str(awaitable_func.__name__) + '_함수 종료') except Exception as e: # logging.info('[E]' , awaitable_func.__name__, e) logging.error('[E]' + str(awaitable_func.__name__)+ ': ' + str(e)) await asyncio.sleep(0.5) return keeping_state # send client name to server_status # @async_dec # async def register_client(): # global manager, inform_SE # res = requests.put(inform_SE + 'RegisterFLTask', # data=json.dumps({ # 'FL_task_ID': manager.task_id, # 'Device_mac': manager.client_mac, # 'Device_hostname': manager.client_name, # 'Device_online': manager.client_online, # 'Device_training': manager.client_training, # })) # if res.status_code == 200: # pass # else: # logging.error('FLSe/RegisterFLTask: server_ST offline') # pass # await asyncio.sleep(14) # return manager # check Server Status @async_dec async def health_check(): global manager health_check_result = { "client_training": manager.client_training, "client_online": manager.client_online, "FL_ready": manager.FL_ready } json_result = json.dumps(health_check_result) logging.info(f'health_check - {json_result}') # If Server is Off, Client Local Learning = False if not manager.FL_ready: manager.client_training = False if (not manager.client_training) and manager.client_online: loop = asyncio.get_event_loop() res = await loop.run_in_executor( None, requests.get, ( 'http://' + manager.server_ST + '/FLSe/info/' + manager.task_id + '/' + get_mac_address() ) ) if (res.status_code == 200) and (res.json()['Server_Status']['FLSeReady']): manager.FL_ready = res.json()['Server_Status']['FLSeReady'] manager.GL_Model_V = res.json()['Server_Status']['GL_Model_V'] # Update manager.FL_task_status based on the server's response task_status_data = res.json()['Server_Status']['Task_status'] logging.info(f'task_status_data - {task_status_data}') if task_status_data is not None: manager.task_status = FLTask(**task_status_data) else: manager.task_status = None elif (res.status_code != 200): # manager.FL_client_online = False logging.error('FLSe/info: ' + str(res.status_code) + ' FL_server_ST offline') # exit(0) else: pass else: pass await asyncio.sleep(10) return manager # check client status @async_dec async def check_flclient_online(): global manager logging.info('Check client online info') if not manager.client_training: try: loop = asyncio.get_event_loop() res_on = await loop.run_in_executor(None, requests.get, ('http://' + manager.FL_client + '/online')) if (res_on.status_code == 200) and (res_on.json()['client_online']): manager.client_online = res_on.json()['client_online'] manager.client_training = res_on.json()['client_start'] manager.task_id = res_on.json()['task_id'] logging.info('client_online') else: logging.info('client offline') pass except requests.exceptions.ConnectionError: logging.info('client offline') pass res_task = requests.put(inform_SE + 'RegisterFLTask', data=json.dumps({ 'FL_task_ID': manager.task_id, 'Device_mac': manager.client_mac, 'Device_hostname': manager.client_name, 'Device_online': manager.client_online, 'Device_training': manager.client_training, })) if res_task.status_code == 200: pass else: logging.error('FLSe/RegisterFLTask: server_ST offline') pass else: pass await asyncio.sleep(6) return manager # Helper function to make the POST request def post_request(url, json_data): return requests.post(url, json=json_data) # make trigger for client fl start @async_dec async def start_training(): global manager # logging.info(f'start_training - FL Client Learning: {manager.FL_learning}') # logging.info(f'start_training - FL Client Online: {manager.FL_client_online}') # logging.info(f'start_training - FL Server Status: {manager.FL_ready}') # Check if the FL_task_status is not None if manager.task_status: if manager.client_online and (not manager.client_training) and manager.FL_ready: logging.info('start training') loop = asyncio.get_event_loop() # Use the helper function with run_in_executor res = await loop.run_in_executor(None, post_request, 'http://' + manager.FL_client + '/start', {"server_ip": manager.server, "client_mac": manager.client_mac}) manager.client_training = True logging.info(f'client_start code: {res.status_code}') if (res.status_code == 200) and (res.json()['FL_client_start']): logging.info('flclient learning') elif res.status_code != 200: manager.client_online = False logging.info('flclient offline') else: pass else: # await asyncio.sleep(11) pass else: logging.info("FL_task_status is None") await asyncio.sleep(8) return manager if __name__ == "__main__": # asyncio.run(training()) uvicorn.run("client_manager_main:app", host='0.0.0.0', port=8004, reload=True, loop="asyncio")'models.py' from sklearn.metrics import f1_score import torch from torch import nn from torch import optim import torch.nn.functional as F from tqdm import tqdm # Define MNIST Model class MNISTClassifier(nn.Module): # To properly utilize the config file, the output_size variable must be used in __init__(). def __init__(self, output_size): super(MNISTClassifier, self).__init__() # Convolutional layers self.conv1 = nn.Conv2d(1, 32, kernel_size=5, stride=1, padding=2) self.conv2 = nn.Conv2d(32, 64, kernel_size=5, stride=1, padding=2) self.pool = nn.MaxPool2d(kernel_size=2, stride=2, padding=0) # Fully connected layers self.fc1 = nn.Linear(64 * 7 * 7, 1000) # Image size is 28x28, reduced to 14x14 and then to 7x7 self.fc2 = nn.Linear(1000, output_size) # 10 output classes (digits 0-9) def forward(self, x): x = F.relu(self.conv1(x)) x = self.pool(x) x = F.relu(self.conv2(x)) x = self.pool(x) # Flatten the output for the fully connected layers x = x.view(-1, 64 * 7 * 7) x = F.relu(self.fc1(x)) x = self.fc2(x) return x # Set the torch train & test # torch train def train_torch(): def custom_train_torch(model, train_loader, epochs, cfg): """ Train the network on the training set. Model must be the return value. """ print("Starting training...") criterion = nn.CrossEntropyLoss() optimizer = optim.Adam(model.parameters(), lr=cfg.learning_rate) device = torch.device("cuda" if torch.cuda.is_available() else "cpu") model.to(device) model.train() for epoch in range(epochs): with tqdm(total=len(train_loader), desc=f'Epoch {epoch+1}/{epochs}', unit='batch') as pbar: for inputs, labels in train_loader: inputs, labels = inputs.to(device), labels.to(device) optimizer.zero_grad() outputs = model(inputs) loss = criterion(outputs, labels) loss.backward() optimizer.step() pbar.update() # Update the progress bar for each batch model.to("cpu") return model return custom_train_torch # torch test def test_torch(): def custom_test_torch(model, test_loader, cfg): """ Validate the network on the entire test set. Loss, accuracy values, and dictionary-type metrics variables are fixed as return values. """ print("Starting evalutation...") criterion = nn.CrossEntropyLoss() device = torch.device("cuda" if torch.cuda.is_available() else "cpu") correct = 0 total_loss = 0.0 all_labels = [] all_predictions = [] model.to(device) model.eval() with torch.no_grad(): with tqdm(total=len(test_loader), desc='Testing', unit='batch') as pbar: for inputs, labels in test_loader: inputs, labels = inputs.to(device), labels.to(device) outputs = model(inputs) # Calculate loss loss = criterion(outputs, labels) total_loss += loss.item() _, predicted = torch.max(outputs, 1) correct += (predicted == labels).sum().item() all_labels.extend(labels.cpu().numpy()) all_predictions.extend(predicted.cpu().numpy()) pbar.update() # Update the progress bar for each batch accuracy = correct / len(test_loader.dataset) average_loss = total_loss / len(test_loader) # Calculate average loss # if you use metrics, you set metrics # type is dict # for example, Calculate F1 score f1 = f1_score(all_labels, all_predictions, average='weighted') # Add F1 score to metrics metrics = {"f1_score": f1} # metrics=None model.to("cpu") # move model back to CPU return average_loss, accuracy, metrics return custom_test_torch'data_preparation.py' import json import logging from collections import Counter from datetime import datetime import torch from torch.utils.data import DataLoader, Dataset, random_split from torchvision import datasets, transforms # set log format handlers_list = [logging.StreamHandler()] logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s", handlers=handlers_list) logger = logging.getLogger(__name__) """ Create your data loader for training/testing local & global model. Keep the value of the return variable for normal operation. """ # Pytorch version # MNIST def load_partition(dataset, validation_split, batch_size): """ The variables train_loader, val_loader, and test_loader must be returned fixedly. """ now = datetime.now() now_str = now.strftime('%Y-%m-%d %H:%M:%S') fl_task = {"dataset": dataset, "start_execution_time": now_str} fl_task_json = json.dumps(fl_task) logging.info(f'FL_Task - {fl_task_json}') # MNIST Data Preprocessing transform = transforms.Compose([ transforms.ToTensor(), transforms.Normalize((0.5,), (0.5,)) # Adjusted for grayscale ]) # Download MNIST Dataset full_dataset = datasets.MNIST(root='./dataset/mnist', train=True, download=True, transform=transform) # Splitting the full dataset into train, validation, and test sets test_split = 0.2 train_size = int((1 - validation_split - test_split) * len(full_dataset)) validation_size = int(validation_split * len(full_dataset)) test_size = len(full_dataset) - train_size - validation_size train_dataset, val_dataset, test_dataset = random_split(full_dataset, [train_size, validation_size, test_size]) # DataLoader for training, validation, and test train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True) val_loader = DataLoader(val_dataset, batch_size=batch_size) test_loader = DataLoader(test_dataset, batch_size=batch_size) return train_loader, val_loader, test_loader def gl_model_torch_validation(batch_size): """ Setting up a dataset to evaluate a global model on the server """ transform = transforms.Compose([ transforms.ToTensor(), transforms.Normalize((0.5,), (0.5,)) # Adjusted for grayscale ]) # Load the test set of MNIST Dataset val_dataset = datasets.MNIST(root='./dataset/mnist', train=False, download=True, transform=transform) # DataLoader for validation gl_val_loader = DataLoader(val_dataset, batch_size=batch_size) return gl_val_loader
Operation flow
Run
client_main.pyandclient_manager_main.py.python3 client_main.py python3 client_manager_main.pyWhen

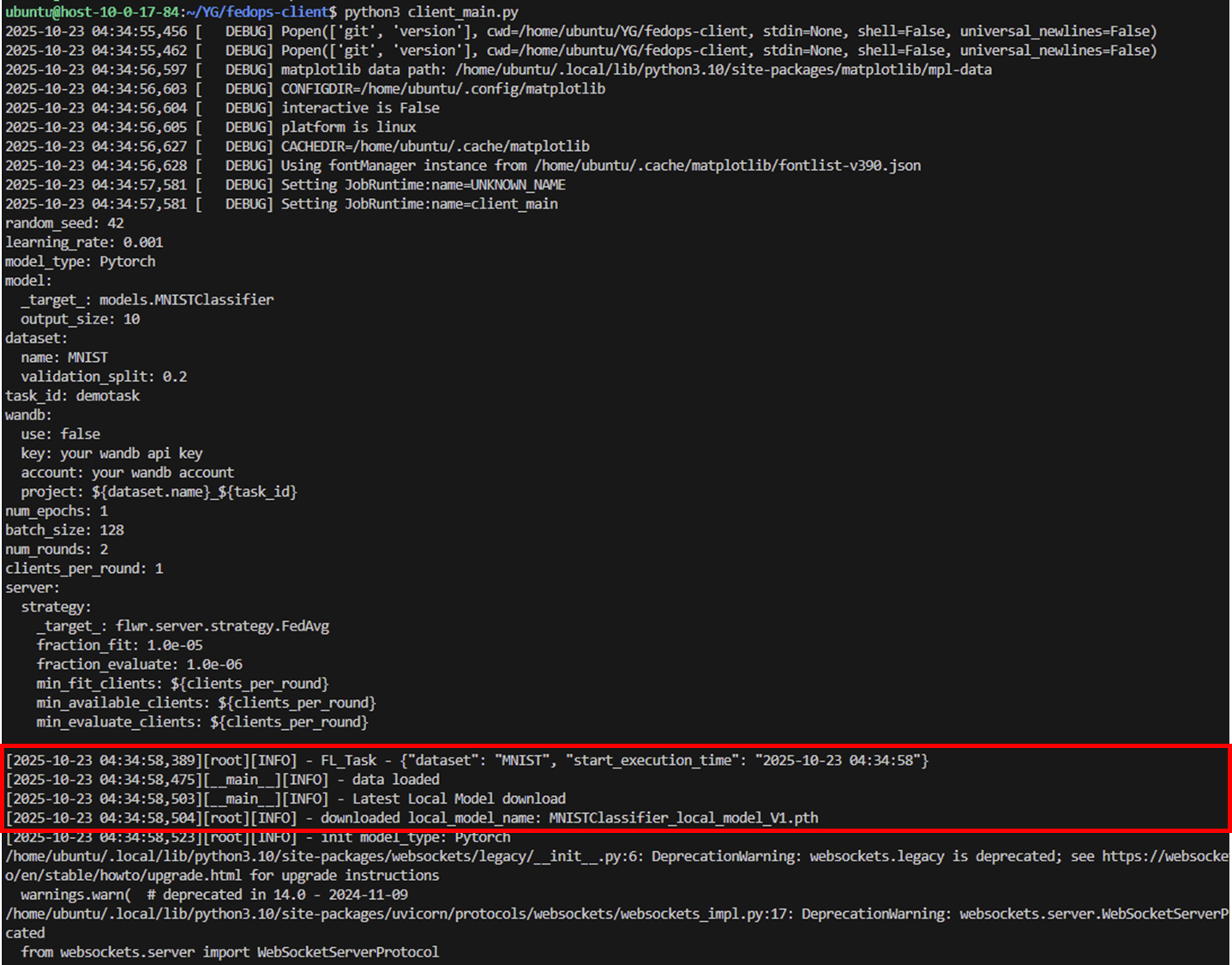

client_main.pystarts for the first time, it loads the data required for training, loads the most recent local model (if any), and then waits to connect to the FL server..png)

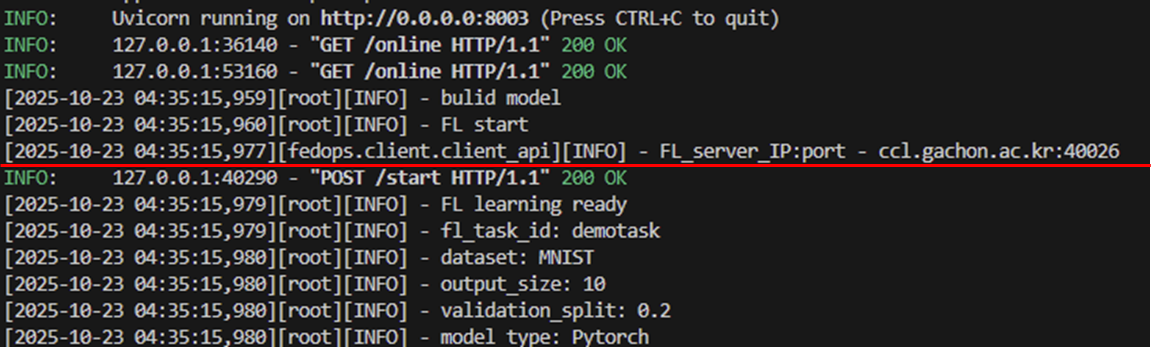

If the FL server is running, the client receives the server port from the server and attempts to connect.
.png)

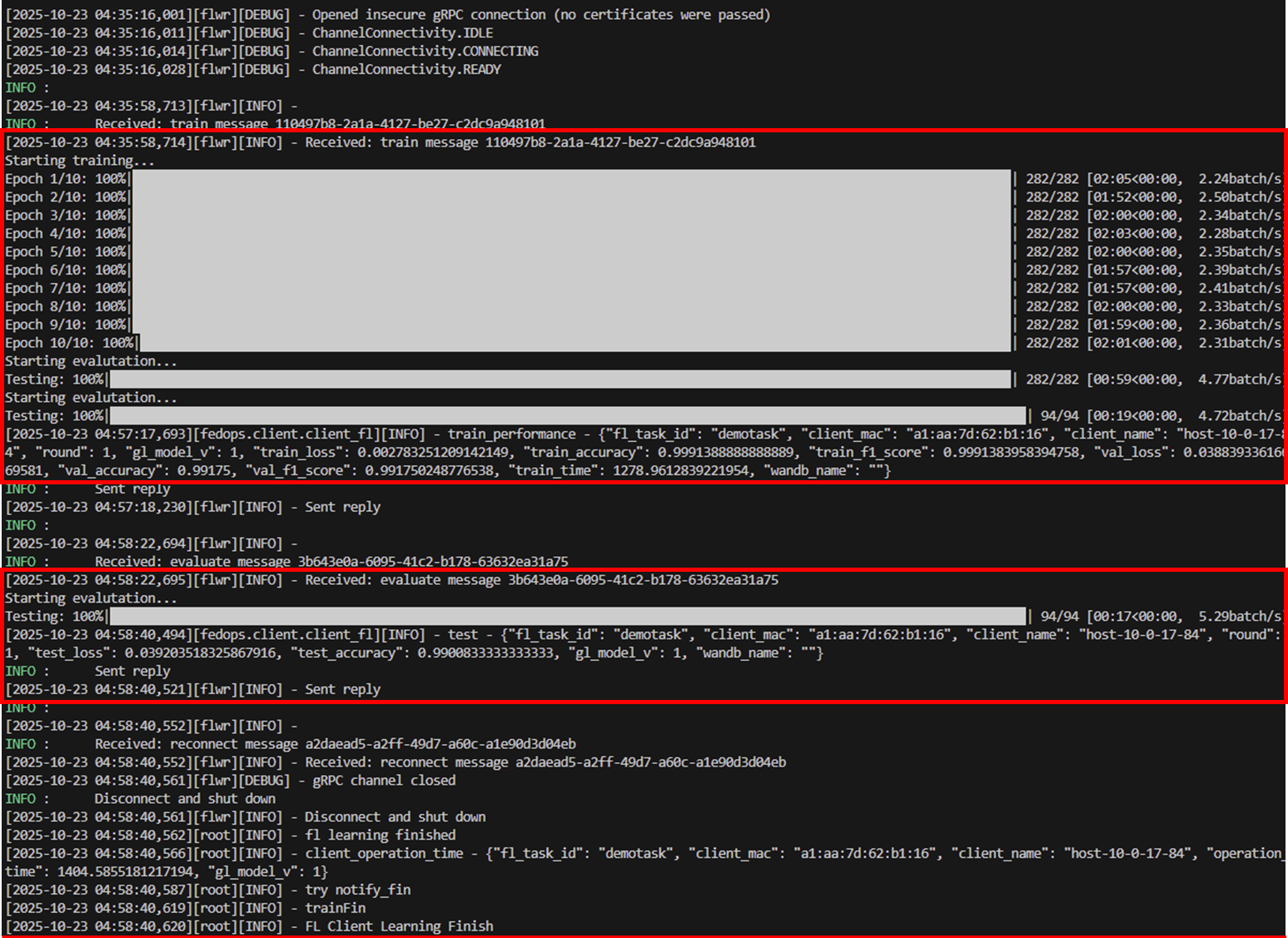

The client receives the initial global model parameters from the server and then performs training and evaluation. The number of local epochs is provided by the server. After the server completes all rounds, the local_model folder is created and the task-specific model is saved in pth format.
.png)
.png)
