📝 FedOps Clustering Tuning Guide


This guide provides step-by-step instructions on how to implement FedOps Clustering Tuning, a federated learning lifecycle management operations framework.

This use case will work just fine without modifying anything.

Baseline

- Baseline
    - client_main.py
    - client_mananger_main.py
    - server_main.py
    - models.py
    - data_preparation.py
    - requirements.txt (for server)
    - conf
        - config.yaml

Before you start, you have to clone these files in your directory

git clone https://github.com/gachon-CCLab/FedOps.git && mv FedOps/hypo/usecase . && rm -rf FedOps

This guide provides step-by-step instructions on how to implement FedOps clustering + optuna, a federated learning lifecycle management operations framework.

This use case will work just fine without modifying anything.

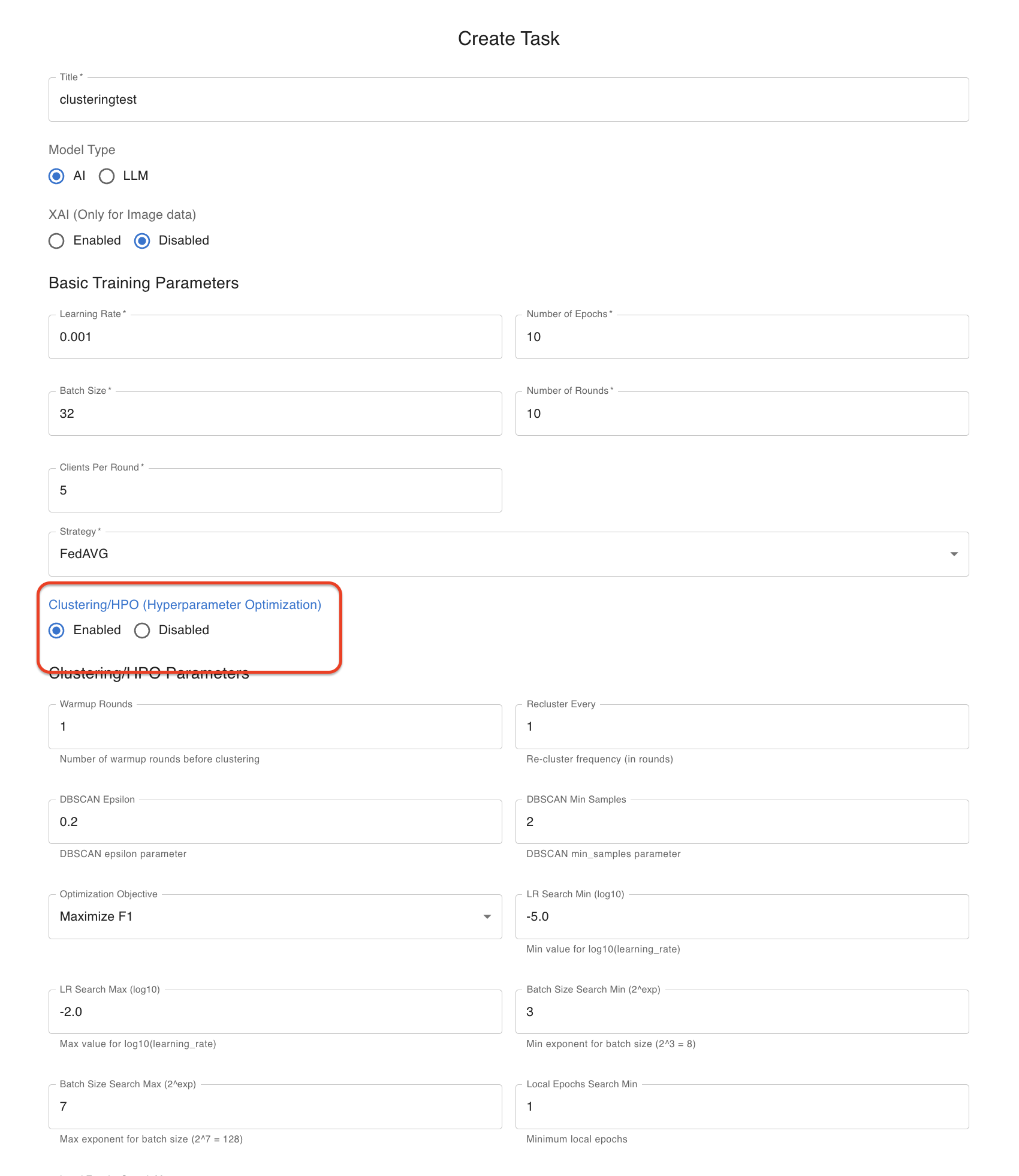

  1. Create a task. you have to choose enabled in clustering/hpo(hyperparameter optimization)


You can see what those that mean

  • warmup_rounds: The number of rounds of warm-up training to run before starting clustering.
  • Recluster_Every: Defines how many rounds should pass before re-running clustering.
  • DBSCAN Epsilon: The distance threshold for DBSCAN (controls how close clients must be to be grouped in the same cluster).
  • DBSCAN Min_Samples: The minimum number of samples for DBSCAN (the minimum number of clients required to form a valid cluster).
  • Optimization Objective: The optimization target for HPO. Can be set to maximize F1 score, maximize accuracy, or minimize loss.
  • LR Search Min(log10): The minimum value of the learning rate search range (on a log_10 scale).
  • LR Search Max(log10): The maximum value of the learning rate search range (on a log_10 scale).
  • Batch Size Search_Min(log2): The minimum value of the batch size search range (on a log_2 scale).
  • Batch Size Search_Max(log2): The maximum value of the batch size search range (on a log_2 scale).
  • Local Epochs Search_Min: The minimum value of the local_epochs search range.
  • Local Epochs Search_Max: The maximum value of the local_epochs search range.

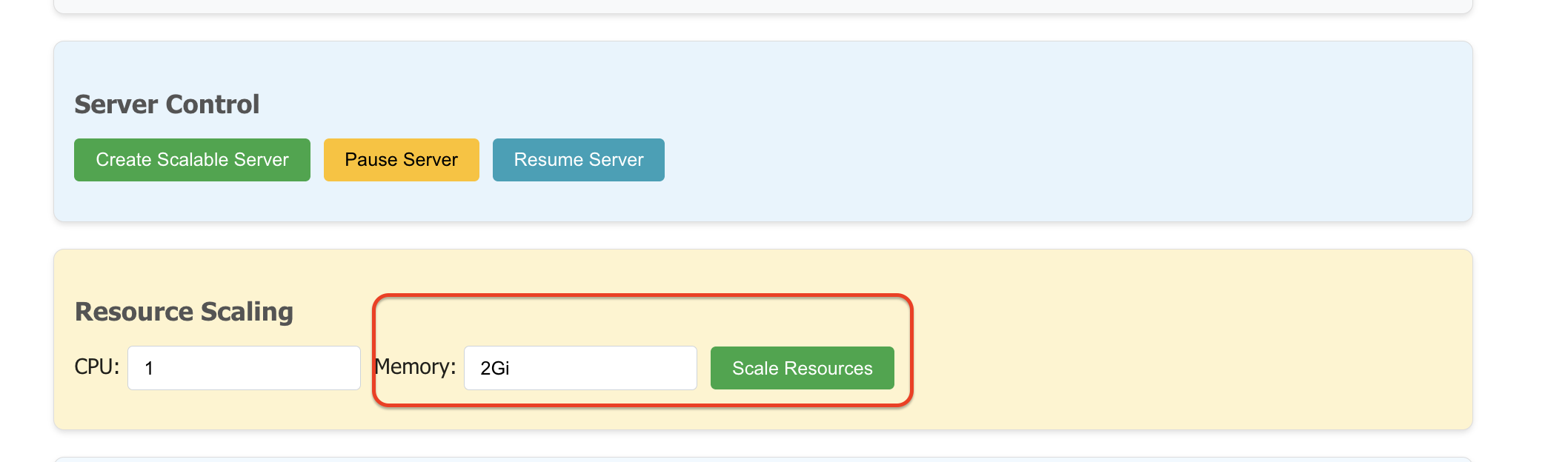

  1. Set memory like this, you have to change memory about 10Gi

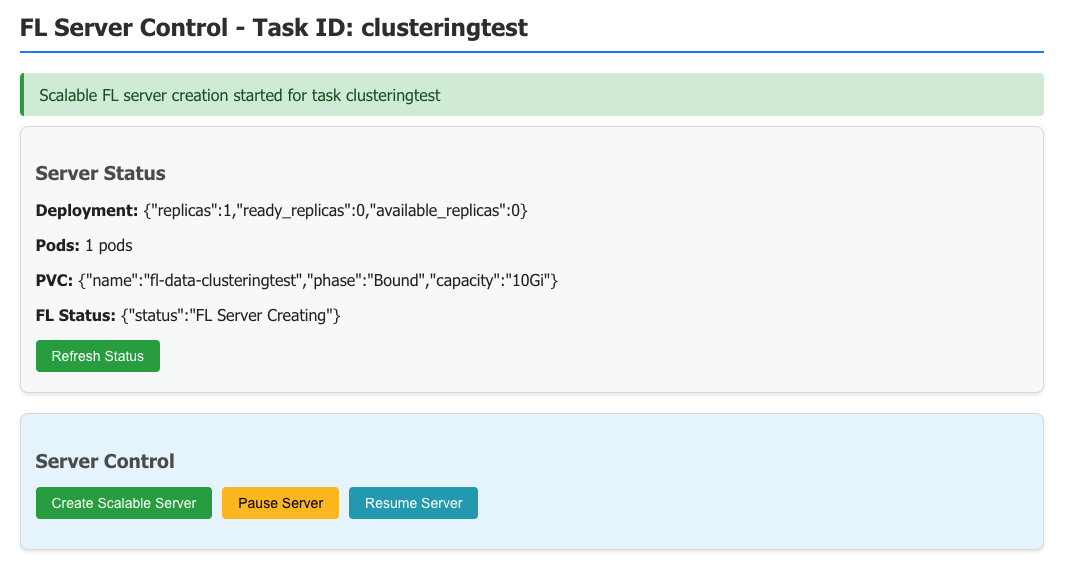

  2. Create the server as in a standard federated learning setup (this part should be implemented the same way as in a regular FL environment).

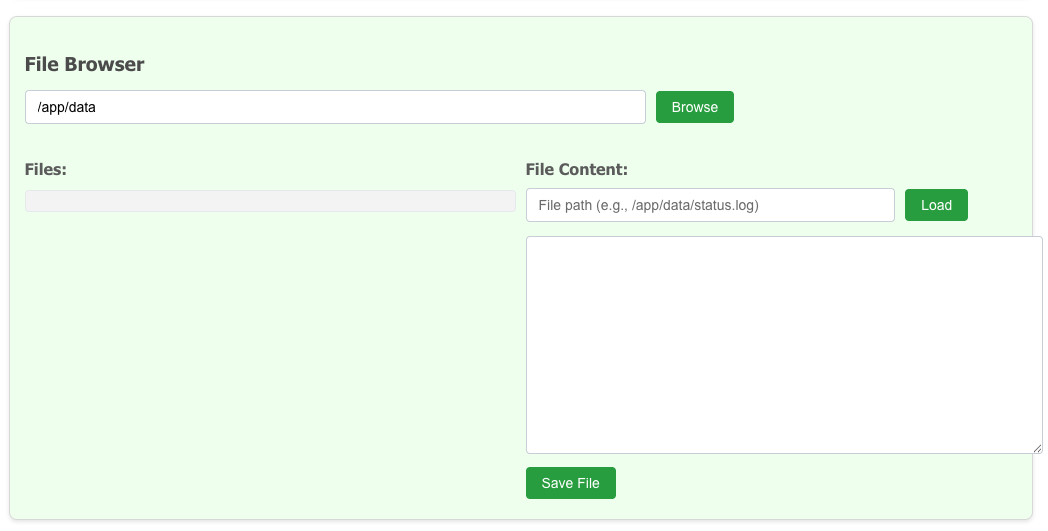

  3. Modify the File Browser (you can simply use the regular data_preparation.py if you want to work in a Non-IID environment).


    a. If you want to experiment in a Non-IID environment, modify data_preparation.py as shown below. Copy and paste the file exactly the same way into your own your local folder.

    The file path should be: /app/code/data_preparation.py

    use this code to data_preparation.py

     # data_preparation.py

 import os
 import json
 import logging
 from collections import Counter
 from datetime import datetime

 import torch
 from torch.utils.data import DataLoader, Dataset, random_split, Subset
 from torchvision import datasets, transforms

 # Non-IID partition utility (use exactly this import path as requested)
 from fedops.utils.fedco.datasetting import build_parts  # ← keep as-is

 # Configure logging
 handlers_list = [logging.StreamHandler()]
 logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s",
                     handlers=handlers_list)
 logger = logging.getLogger(__name__)

 """
 Create your data loader for training/testing local & global models.
 Return variables must be (train_loader, val_loader, test_loader) for normal operation.
 """

 # === Environment variable mapping ===
 # FEDOPS_PARTITION_CODE: "0"(iid) | "1"(dirichlet) | "2"(label_skew) | "3"(qty_skew)
 #   - if "1": FEDOPS_DIRICHLET_ALPHA (default 0.3)
 #   - if "2": FEDOPS_LABELS_PER_CLIENT (default 2)
 #   - if "3": FEDOPS_QTY_BETA (default 0.5)
 #
 # Common:
 #   FEDOPS_NUM_CLIENTS (default 1)
 #   FEDOPS_CLIENT_ID   (default 0)
 #   FEDOPS_SEED        (default 42)
 #
 # Example:
 #   export FEDOPS_PARTITION_CODE=1
 #   export FEDOPS_DIRICHLET_ALPHA=0.3
 #   export FEDOPS_NUM_CLIENTS=3
 #   export FEDOPS_CLIENT_ID=0
 def _resolve_mode_from_env() -> str:
     code = os.getenv("FEDOPS_PARTITION_CODE", "0").strip()
     if code == "0":
         return "iid"
     elif code == "1":
         alpha = os.getenv("FEDOPS_DIRICHLET_ALPHA", "0.3").strip()
         return f"dirichlet:{alpha}"
     elif code == "2":
         n_labels = os.getenv("FEDOPS_LABELS_PER_CLIENT", "2").strip()
         return f"label_skew:{n_labels}"
 	  elif code == "3":
         beta = os.getenv("FEDOPS_QTY_BETA", "0.5").strip()
         return f"qty_skew:beta{beta}"
 	  else:
         logger.warning(f"[partition] Unknown FEDOPS_PARTITION_CODE={code}, fallback to iid")
         return "iid"

 # MNIST
 def load_partition(dataset, validation_split, batch_size):
     """
     Build per-client partitioned loaders.
     Returns: train_loader, val_loader, test_loader
     """
     # Basic task logging
     now = datetime.now()
     now_str = now.strftime('%Y-%m-%d %H:%M:%S')
     fl_task = {"dataset": dataset, "start_execution_time": now_str}
     fl_task_json = json.dumps(fl_task)
     logging.info(f'FL_Task - {fl_task_json}')

     # Read Non-IID settings from environment variables
     num_clients = int(os.getenv("FEDOPS_NUM_CLIENTS", "1"))
     client_id   = int(os.getenv("FEDOPS_CLIENT_ID", "0"))
     seed        = int(os.getenv("FEDOPS_SEED", "42"))
     mode_str    = _resolve_mode_from_env()

     logging.info(f"[partition] mode={mode_str}, num_clients={num_clients}, client_id={client_id}, seed={seed}")

     # MNIST preprocessing (grayscale normalization)
     transform = transforms.Compose([
         transforms.ToTensor(),
         transforms.Normalize((0.5,), (0.5,))
     ])

     # Load full MNIST training split (download if needed)
     full_dataset = datasets.MNIST(root='./dataset/mnist', train=True, download=True, transform=transform)

     # Build Non-IID index lists per client, then select only this client's subset
     targets_np = full_dataset.targets.numpy() if torch.is_tensor(full_dataset.targets) else full_dataset.targets
     parts = build_parts(targets_np, num_clients=num_clients, mode_str=mode_str, seed=seed)

     if not (0 <= client_id < num_clients):
         raise ValueError(f"CLIENT_ID must be 0..{num_clients-1}, got {client_id}")

     client_indices = parts[client_id]
     if len(client_indices) == 0:
         logger.warning(f"[partition] client {client_id} has 0 samples (mode={mode_str})")

     subset_for_client = Subset(full_dataset, client_indices)

     # Keep original behavior: split the client subset again into train/val/test
     test_split = 0.2
     total_len = len(subset_for_client)
     train_size = int((1 - validation_split - test_split) * total_len)
     validation_size = int(validation_split * total_len)
     test_size = total_len - train_size - validation_size

     if train_size <= 0:
         raise ValueError(
             f"[partition] Not enough samples after partition: total={total_len}, "
             f"val={validation_size}, test={test_size}"
         )

     train_dataset, val_dataset, test_dataset = random_split(
         subset_for_client,
         [train_size, validation_size, test_size],
         generator=torch.Generator().manual_seed(seed + client_id)
     )

     # DataLoaders
     train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
     val_loader = DataLoader(val_dataset, batch_size=batch_size) if validation_size > 0 else DataLoader([])
     test_loader = DataLoader(test_dataset, batch_size=batch_size) if test_size > 0 else DataLoader([])

     # Simple label histogram for sanity check
     def _count_labels(ds):
         if len(ds) == 0:
             return {}
         labels = []
         for i in range(len(ds)):
             _, y = ds[i]
             y = int(y.item()) if torch.is_tensor(y) else int(y)
             labels.append(y)
         return dict(Counter(labels))

     logging.info(f"[partition] train_size={len(train_dataset)}, val_size={len(val_dataset)}, test_size={len(test_dataset)}")
     logging.info(f"[partition] train_label_hist={_count_labels(train_dataset)}")

     return train_loader, val_loader, test_loader

 def gl_model_torch_validation(batch_size):
     """
     Build a loader for centralized/global validation (server-side).
     Uses MNIST test split.
     """
     transform = transforms.Compose([
         transforms.ToTensor(),
         transforms.Normalize((0.5,), (0.5,))
     ])

     val_dataset = datasets.MNIST(root='./dataset/mnist', train=False, download=True, transform=transform)
     gl_val_loader = DataLoader(val_dataset, batch_size=batch_size)

     return gl_val_loader

    • what is difference with normal data_preparation.py

      ### Variables

      • FEDOPS_PARTITION_CODE
        • "0" → IID (default)
        • "1" → Dirichlet (use FEDOPS_DIRICHLET_ALPHA, default 0.3)
        • "2" → Label-skew (use FEDOPS_LABELS_PER_CLIENT, default 2)
        • "3" → Quantity-skew (use FEDOPS_QTY_BETA, default 0.5)
      • FEDOPS_NUM_CLIENTS — total clients (default 1)
      • FEDOPS_CLIENT_ID — this client’s id (default 0)
      • FEDOPS_SEED — RNG seed (default 42)

      ### Examples

      IID (even split)

        export FEDOPS_PARTITION_CODE=0
  export FEDOPS_NUM_CLIENTS=3
  export FEDOPS_CLIENT_ID=0

      Dirichlet Non-IID (α = 0.3)

        export FEDOPS_PARTITION_CODE=1
  export FEDOPS_DIRICHLET_ALPHA=0.3
  export FEDOPS_NUM_CLIENTS=3
  export FEDOPS_CLIENT_ID=1

      Label-skew (2 labels per client)

        export FEDOPS_PARTITION_CODE=2
  export FEDOPS_LABELS_PER_CLIENT=2
  export FEDOPS_NUM_CLIENTS=5
  export FEDOPS_CLIENT_ID=3

      Quantity-skew (β = 0.5)

        export FEDOPS_PARTITION_CODE=3
  export FEDOPS_QTY_BETA=0.5
  export FEDOPS_NUM_CLIENTS=4
  export FEDOPS_CLIENT_ID=2

      This keeps your pipeline intact, adds clean Non-IID control via env vars, and relies only on build_parts from your existing fedops.utils.fedco.datasetting.

      1. Pick the Non-IID mode via environment variables—no code changes required.

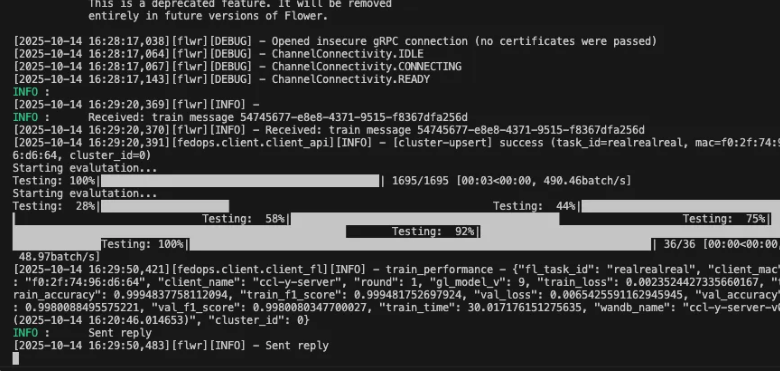

  4. Run each client’s client_main.py and client_manager.py files.

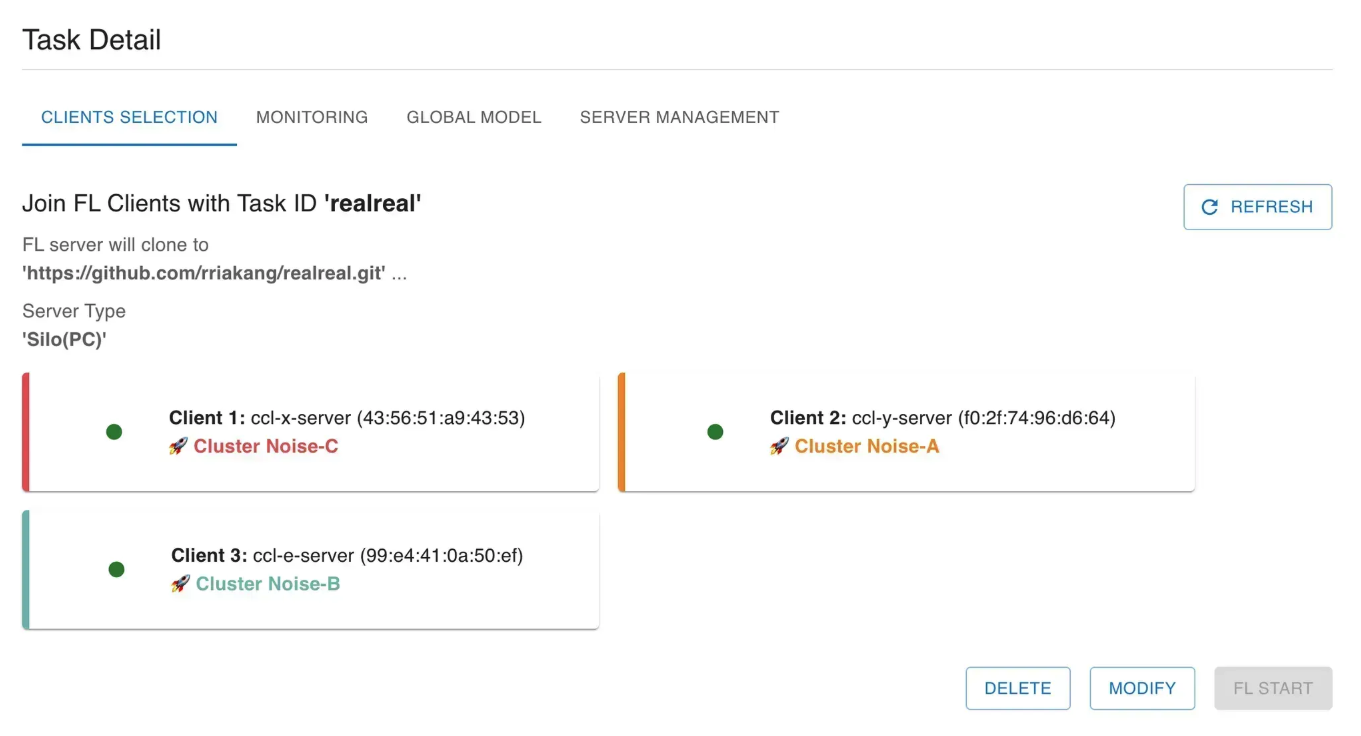

  5. And go back to fedops site and you have to check client task
