๐ FedOps FedMap Guide
How to run this method in your environment?
Following is a usecase which utilized this method (FedMAP) with Facebook AIโs hateful memes multimodal dataset.
Baseline Project Structure
- FedOps/multimodal/Usecases/Facebook_AI_benchmark
- dataset/
- all_in_one_dataset/
- conf/
- config.yaml (# includes metadata and configurations)
- client_main.py (# main client file you need to run in separate terminal)
- client_manager_main.py (# client manager file, run this too in a terminal)
- data_preparation.py
- flclient_patch_task.py
- models.py
- requirements.txt (#server side requirements file)
- server_main.py (# main server side file, dont need to run this)
๐ 1. Clone the Repository at Client
# Clone the repo without downloading all files
git clone --no-checkout https://github.com/gachon-CCLab/FedOps.git
cd FedOps
# Enable sparse checkout
git sparse-checkout init --cone
# Specify the folder you want
git sparse-checkout set multimodal/Usecases/Facebook_AI_benchmark
# Checkout only that folder
git checkout main
cd multimodal/Usecases/Facebook_AI_benchmark
pip install fedops
๐ 2. Download the Dataset for Clients
- Manually download dataset from below links, and unzip & place it within the client side folder structure .
- โdatasetโ folder: https://drive.google.com/file/d/1EGmoFeCt97_Sgrngs6-ryxg6mRS9EXCJ/view?usp=sharing
.png)

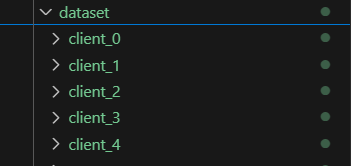

๐กcontains partitioned dataset info for each client (client_0,client_1,client_2,client_3,and client_4) . From here you can decide which client data you have to use and then update client_id: in conf/config.yaml This will be helpful in retrieving exact client specific data from โall_in_one_datasetโ folder .

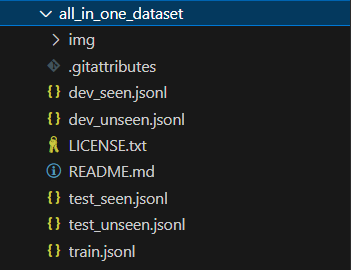

- โall_in_one_datasetโ folder: https://drive.google.com/drive/folders/1AS2QNc2bG18ctV1uHu59I6LXJaxqoKAz?usp=sharing
.png)
๐กall images live here. and please do update the path for the datasets as instructed below:
- Now update the dataset folders path in data_preparation.py file (set the relative path from data_preparation.py). Find below lines.
# ------------ Paths ------------
# Client-side layout (update path here)
BASE_DATASET_DIR = os.path.abspath("/dataset") # contains client_1/, client_2/, ...
IMG_DIR = os.path.abspath("/all_in_one_dataset/img") # all images live here
- Now Paste below script in your client side local IDE (eg: VS Code) to automatically edit client/ app.py file( remember you just have to copy paste whole script at once in terminal).
APP_FILE="$(python -c 'import fedops.client.app as m; print(m.__file__)')"; \
cp "$APP_FILE" "${APP_FILE}.bak-$(date +%Y%m%d-%H%M%S)"; \
cat > "$APP_FILE" <<'PY'
import logging, json
import socket
import time
from fastapi import FastAPI, BackgroundTasks
import asyncio
import uvicorn
from datetime import datetime
from . import client_utils
from . import client_fl
from . import client_wandb
from . import client_api
from ..utils.fedxai.gradcam import MNISTGradCAM
class FLClientTask():
def __init__(self, cfg, fl_task=None, xai=False):
self.app = FastAPI()
self.status = client_utils.FLClientStatus()
self.cfg = cfg
self.client_port = 8003
self.task_id = cfg.task_id
self.dataset_name = cfg.dataset.name
self.output_size = cfg.model.output_size
self.validation_split = cfg.dataset.validation_split
self.wandb_use = cfg.wandb.use
self.model_type = cfg.model_type
self.model = fl_task["model"]
self.model_name = fl_task["model_name"]
self.xai = xai
self.status.client_name = socket.gethostname()
self.status.task_id = self.task_id
self.status.client_mac = client_utils.get_mac_address()
logging.info(f'init model_type: {self.model_type}')
if self.wandb_use:
self.wandb_key = cfg.wandb.key
self.wandb_account = cfg.wandb.account
self.wandb_project = cfg.wandb.project
self.wandb_name = f"{self.status.client_name}-v{self.status.gl_model}({datetime.now()})"
if self.model_type=="Tensorflow":
self.x_train = fl_task["x_train"]
self.x_test = fl_task["x_test"]
self.y_train = fl_task["y_train"]
self.y_test = fl_task["y_test"]
elif self.model_type == "Pytorch":
self.train_loader = fl_task["train_loader"]
self.val_loader = fl_task["val_loader"]
self.test_loader = fl_task["test_loader"]
self.train_torch = fl_task["train_torch"]
self.test_torch = fl_task["test_torch"]
elif self.model_type == "Huggingface":
self.trainset = fl_task["trainset"]
self.tokenizer = fl_task["tokenizer"]
self.finetune_llm = fl_task["finetune_llm"]
self.data_collator = fl_task["data_collator"]
self.formatting_prompts_func = fl_task["formatting_prompts_func"]
async def fl_client_start(self):
logging.info('FL learning ready')
logging.info(f'fl_task_id: {self.task_id}')
logging.info(f'dataset: {self.dataset_name}')
logging.info(f'output_size: {self.output_size}')
logging.info(f'validation_split: {self.validation_split}')
logging.info(f'model_type: {self.model_type}')
"""
Before running this code,
set wandb api and account in the config.yaml
"""
if self.wandb_use:
logging.info(f'wandb_key: {self.wandb_key}')
logging.info(f'wandb_account: {self.wandb_account}')
# Set the name in the wandb project
# Login and init wandb project
wandb_run = client_wandb.start_wandb(self.wandb_key, self.wandb_project, self.wandb_name)
else:
wandb_run=None
self.wandb_name=''
# Initialize wandb_config, client object
wandb_config = {}
# client = None
try:
loop = asyncio.get_event_loop()
if self.model_type == "Tensorflow":
client = client_fl.FLClient(model=self.model, x_train=self.x_train, y_train=self.y_train, x_test=self.x_test,
y_test=self.y_test,
validation_split=self.validation_split, fl_task_id=self.task_id, client_mac=self.status.client_mac,
client_name=self.status.client_name,
fl_round=1, gl_model=self.status.gl_model, wandb_use=self.wandb_use, wandb_name=self.wandb_name,
wandb_run=wandb_run, model_name=self.model_name, model_type=self.model_type)
elif self.model_type == "Pytorch":
client = client_fl.FLClient(model=self.model, validation_split=self.validation_split,
fl_task_id=self.task_id, client_mac=self.status.client_mac, client_name=self.status.client_name,
fl_round=1, gl_model=self.status.gl_model, wandb_use=self.wandb_use,wandb_name=self.wandb_name,
wandb_run=wandb_run, model_name=self.model_name, model_type=self.model_type,
train_loader=self.train_loader, val_loader=self.val_loader, test_loader=self.test_loader,
cfg=self.cfg, train_torch=self.train_torch, test_torch=self.test_torch)
elif self.model_type == "Huggingface":
client = client_fl.FLClient(
model=self.model,
validation_split=self.validation_split,
fl_task_id=self.task_id,
client_mac=self.status.client_mac,
client_name=self.status.client_name,
fl_round=1,
gl_model=self.status.gl_model,
wandb_use=self.wandb_use,
wandb_name=self.wandb_name,
wandb_run=wandb_run,
model_name=self.model_name,
model_type=self.model_type,
trainset=self.trainset,
tokenizer=self.tokenizer,
finetune_llm=self.finetune_llm,
formatting_prompts_func=self.formatting_prompts_func,
data_collator=self.data_collator,
)
# client_start object
client_start = client_fl.flower_client_start(self.status.server_IP, client)
# Guard: avoid calling None/non-callable during/after shutdown
fn = client_start
if not callable(fn):
logging.info("client_start is not callable (likely after shutdown). Skipping FL execution.")
return
# FL client start time
fl_start_time = time.time()
# Run asynchronously FL client with TypeError safety during teardown
try:
await loop.run_in_executor(None, fn)
except TypeError:
logging.exception("client_start became non-callable during shutdown. Ignoring and exiting cleanly.")
return
logging.info('fl learning finished')
# FL client end time
fl_end_time = time.time() - fl_start_time
# Grad-CAM ์ค๋ช
์์ฑ
if self.xai:
try:
logging.info("Generating Grad-CAM explanations...")
gradcam = MNISTGradCAM(model=self.model) # Replace "layer_name" with the desired layer
input_data = self.x_test[:1] # Use a sample input for visualization
cam_output = gradcam.generate(input_data)
# ์ ์ฅ ๋๋ ์๊ฐํ
gradcam.save(cam_output, "gradcam_output.png") # ์ ์ฅ ๊ฒฝ๋ก ์ง์
logging.info("Grad-CAM explanation saved as gradcam_output.png")
except Exception as e:
logging.error(f"Error generating Grad-CAM explanations: {e}")
# Wandb ๋ก๊ทธ ์ถ๊ฐ (์ต์
)
# if self.wandb_use:
# wandb_run.log({"gradcam_output": wandb.Image("gradcam_output.png")})
if self.wandb_use:
wandb_config = {"dataset": self.dataset_name, "model_architecture": self.model_name}
wandb_run.config.update(wandb_config, allow_val_change=True)
# client_wandb.data_status_wandb(wandb_run, label_values)
# Wandb log(Client round end time)
wandb_run.log({"operation_time": fl_end_time, "gl_model_v": self.status.gl_model},step=self.status.gl_model)
# close wandb
wandb_run.finish()
# Get client system result from wandb and send it to client_performance pod
client_wandb.client_system_wandb(self.task_id, self.status.client_mac, self.status.client_name,
self.status.gl_model, self.wandb_name, self.wandb_account, self.wandb_project)
client_all_time_result = {"fl_task_id": self.task_id, "client_mac": self.status.client_mac, "client_name": self.status.client_name,
"operation_time": fl_end_time,"gl_model_v": self.status.gl_model}
json_result = json.dumps(client_all_time_result)
logging.info(f'client_operation_time - {json_result}')
# Send client_time_result to client_performance pod
client_api.ClientServerAPI(self.task_id).put_client_time_result(json_result)
# Delete client object
del client
# Complete Client training
self.status.client_start = await client_utils.notify_fin()
logging.info('FL Client Learning Finish')
except Exception as e:
logging.info('[E][PC0002] learning: %s', e)
self.status.client_fail = True
self.status.client_start = await client_utils.notify_fail()
raise e
def start(self):
# Configure routes, endpoints, and other FastAPI-related logic here
# Example:
@self.app.get('/online')
async def get_info():
return self.status
# asynchronously start client
@self.app.post("/start")
async def client_start_trigger(background_tasks: BackgroundTasks):
# client_manager address
client_res = client_api.ClientMangerAPI().get_info()
# # # latest global model version
last_gl_model_v = client_res.json()['GL_Model_V']
# # next global model version
self.status.gl_model = last_gl_model_v
# self.status.next_gl_model = 1
logging.info('bulid model')
logging.info('FL start')
self.status.client_start = True
# get the FL server IP
self.status.server_IP = client_api.ClientServerAPI(self.task_id).get_port()
# self.status.server_IP = "0.0.0.0:8080"
# start FL Client
background_tasks.add_task(self.fl_client_start)
return self.status
try:
# create client api => to connect client manager
uvicorn.run(self.app, host='0.0.0.0', port=self.client_port)
except Exception as e:
# Handle any exceptions that occur during the execution
logging.error(f'An error occurred during execution: {e}')
finally:
# FL client out
client_api.ClientMangerAPI().get_client_out()
logging.info(f'{self.status.client_name};{self.status.client_mac}-client close')
if self.xai == True:
# close xai
GradCAM.close_xai()
PY
- Now Paste below script in your client side local IDE (eg: VS Code) to automatically edit client/client_fl.py file( remember you just have to copy paste whole script at once in terminal).
# 1) Locate the file and back it up
APP_FILE="$(python -c 'import fedops.client.client_fl as m; print(m.__file__)')"
echo "Target: $APP_FILE"
cp "$APP_FILE" "${APP_FILE}.bak-$(date +%Y%m%d-%H%M%S)"
# 2) Overwrite with your content
cat > "$APP_FILE" <<'PYCODE'
#/home/ccl/anaconda3/envs/fedops_fedmm_env/lib/python3.9/site-packages/fedops/client/client_fl.py
from collections import OrderedDict
import json, logging
import flwr as fl
import time
import os
from functools import partial
from . import client_api
from . import client_utils
# set log format
handlers_list = [logging.StreamHandler()]
if "MONITORING" in os.environ:
if os.environ["MONITORING"] == '1':
handlers_list.append(logging.FileHandler('./fedops/fl_client.log'))
else:
pass
logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s",
handlers=handlers_list)
logger = logging.getLogger(__name__)
import warnings
import torch
# Avoid warnings
os.environ["TOKENIZERS_PARALLELISM"] = "true"
os.environ["RAY_DISABLE_DOCKER_CPU_WARNING"] = "1"
warnings.filterwarnings("ignore", category=UserWarning)
class FLClient(fl.client.NumPyClient):
def __init__(self, model, validation_split, fl_task_id, client_mac, client_name, fl_round,gl_model, wandb_use, wandb_name,
wandb_run=None, model_name=None, model_type=None, x_train=None, y_train=None, x_test=None, y_test=None,
train_loader=None, val_loader=None, test_loader=None, cfg=None, train_torch=None, test_torch=None,
finetune_llm=None, trainset=None, tokenizer=None, data_collator=None, formatting_prompts_func=None, num_rounds=None):
self.cfg = cfg
self.model_type = model_type
self.model = model
self.validation_split = validation_split
self.fl_task_id = fl_task_id
self.client_mac = client_mac
self.client_name = client_name
self.fl_round = fl_round
self.gl_model = gl_model
self.model_name = model_name
self.wandb_use = wandb_use
self.wandb_run = wandb_run
self.wandb_name = wandb_name
if self.model_type == "Tensorflow":
self.x_train, self.y_train = x_train, y_train
self.x_test, self.y_test = x_test, y_test
elif self.model_type == "Pytorch":
self.train_loader = train_loader
self.val_loader = val_loader
self.test_loader = test_loader
self.train_torch = train_torch
self.test_torch = test_torch
elif self.model_type == "Huggingface":
self.trainset = trainset
self.tokenizer = tokenizer
self.finetune_llm = finetune_llm
self.data_collator = data_collator
self.formatting_prompts_func = formatting_prompts_func
def set_parameters(self, parameters):
if self.model_type in ["Tensorflow"]:
raise Exception("Not implemented")
elif self.model_type in ["Pytorch"]:
# Use ALL keys in deterministic order โ must match server
keys = sorted(self.model.state_dict().keys())
assert len(keys) == len(parameters), (
f"client mismatch: {len(keys)} model keys vs {len(parameters)} arrays from server"
)
state_dict = OrderedDict((k, torch.tensor(v)) for k, v in zip(keys, parameters))
# If your classifier head differs locally, switch strict=True -> strict=False
self.model.load_state_dict(state_dict, strict=True)
elif self.model_type in ["Huggingface"]:
client_utils.set_parameters_for_llm(self.model, parameters)
def get_parameters(self):
"""Get parameters of the local model."""
if self.model_type == "Tensorflow":
raise Exception("Not implemented (server-side parameter initialization)")
elif self.model_type == "Pytorch":
# Return ALL params in sorted(key) order โ must match server
sd = self.model.state_dict()
return [sd[k].cpu().numpy() for k in sorted(sd.keys())]
elif self.model_type == "Huggingface":
return client_utils.get_parameters_for_llm(self.model)
def get_properties(self, config):
"""Get properties of client."""
raise Exception("Not implemented")
def fit(self, parameters, config):
"""Train parameters on the locally held training set."""
print(f"config: {config}")
# Get hyperparameters for this round
batch_size: int = config["batch_size"]
epochs: int = config["local_epochs"]
num_rounds: int = config["num_rounds"]
if self.wandb_use:
# add wandb config
self.wandb_run.config.update({"batch_size": batch_size, "epochs": epochs, "num_rounds": num_rounds}, allow_val_change=True)
# start round time
round_start_time = time.time()
# model path for saving local model
model_path = f'./local_model/{self.fl_task_id}/{self.model_name}_local_model_V{self.gl_model}'
# Initialize results
results = {}
# Training Tensorflow
if self.model_type == "Tensorflow":
# Update local model parameters
self.model.set_weights(parameters)
# Train the model using hyperparameters from config
history = self.model.fit(
self.x_train,
self.y_train,
batch_size,
epochs,
validation_split=self.validation_split,
)
train_loss = history.history["loss"][len(history.history["loss"])-1]
train_accuracy = history.history["accuracy"][len(history.history["accuracy"])-1]
results = {
"train_loss": train_loss,
"train_accuracy": train_accuracy,
"val_loss": history.history["val_loss"][len(history.history["val_loss"])-1],
"val_accuracy": history.history["val_accuracy"][len(history.history["val_accuracy"])-1],
}
# Return updated model parameters
parameters_prime = self.model.get_weights()
num_examples_train = len(self.x_train)
# save local model
self.model.save(model_path+'.h5')
# Training Torch
elif self.model_type == "Pytorch":
# Update local model parameters
self.set_parameters(parameters)
trained_model = self.train_torch(self.model, self.train_loader, epochs, self.cfg)
train_loss, train_accuracy, train_metrics = self.test_torch(trained_model, self.train_loader, self.cfg)
val_loss, val_accuracy, val_metrics = self.test_torch(trained_model, self.val_loader, self.cfg)
if train_metrics!=None:
train_results = {"loss": train_loss,"accuracy": train_accuracy,**train_metrics}
val_results = {"loss": val_loss,"accuracy": val_accuracy, **val_metrics}
else:
train_results = {"loss": train_loss,"accuracy": train_accuracy}
val_results = {"loss": val_loss,"accuracy": val_accuracy}
# Prefixing keys with 'train_' and 'val_'
train_results_prefixed = {"train_" + key: value for key, value in train_results.items()}
val_results_prefixed = {"val_" + key: value for key, value in val_results.items()}
# Return updated model parameters
parameters_prime = self.get_parameters()
num_examples_train = len(self.train_loader)
# Save model weights
torch.save(self.model.state_dict(), model_path+'.pth')
elif self.model_type == "Huggingface":
train_results_prefixed = {}
val_results_prefixed = {}
# Update local model parameters: LoRA Adapter params
self.set_parameters(parameters)
trained_model = self.finetune_llm(self.model, self.trainset, self.tokenizer, self.formatting_prompts_func, self.data_collator)
parameters_prime = self.get_parameters()
num_examples_train = len(self.trainset)
train_loss = results["train_loss"] if "train_loss" in results else None
results = {"train_loss": train_loss}
model_save_path = model_path
self.model.save_pretrained(model_save_path)
# ์ ํ์ ์ผ๋ก tokenizer๋ ํจ๊ป ์ ์ฅ
if self.tokenizer is not None:
self.tokenizer.save_pretrained(model_save_path)
# send metrics back
# If not set in TF branch, define empty dicts to avoid NameError
if 'train_results_prefixed' not in locals():
train_results_prefixed = {}
if 'val_results_prefixed' not in locals():
val_results_prefixed = {}
results_payload = {**train_results_prefixed, **val_results_prefixed}
return parameters_prime, num_examples_train, results_payload
def flower_client_start(server_address, client):
fl.client.start_numpy_client(server_address=server_address, client=client)
PYCODE
# 3) (Optional) Verify write
nl -ba "$APP_FILE"
# 4) (Optional) Byte-compile to avoid first-run latency
python - <<'PY'
import py_compile, importlib, sys
import fedops.client.client_fl as m
py_compile.compile(m.__file__, cfile=None, dfile=None, doraise=True)
print("Compiled:", m.__file__)
PY
now we are ready with client side files, lets move to server side setup !!!!!!!
๐ 3. Create a Task on FedOps Platform
- Visit: https://ccl.gachon.ac.kr/fedops/task
- Sign up or log in.

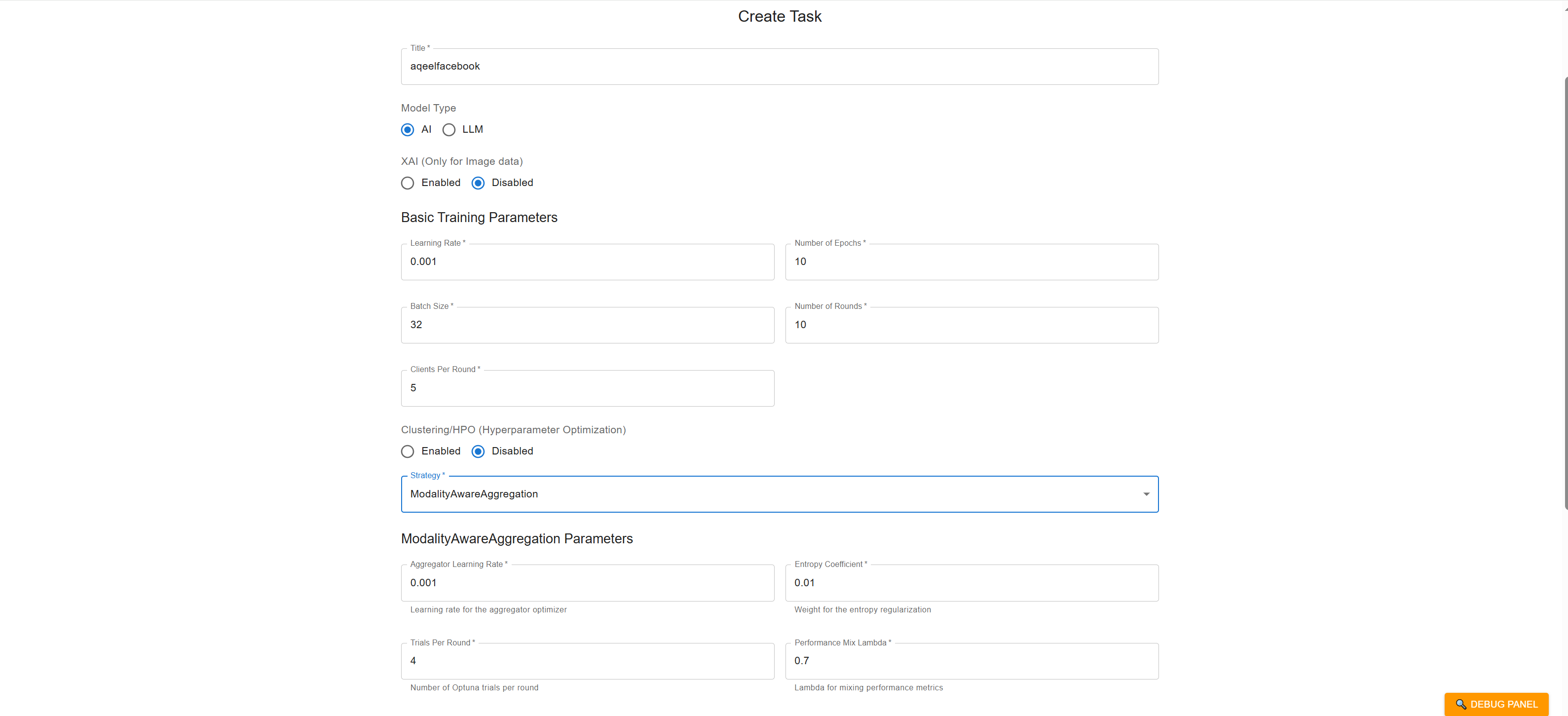

- Create a new task by filling in like below:
.png)
- Task ID
- Disable XAI, & Custering HPO
- Other required task metadata as below (choose ModalityAwareAggregation as strategy to activate fedmap. And please do fill its own parameter values as your own need.
- FedMAP parameters and its meaning.
aggregator_lr: 0.001
Learning rate for the aggregator MLP which runs behind FedMAP that distills teacher โ student weights. If weights oscillate, lower it (e.g., 0.00005); if learning is sluggish, raise a bit.
entropy_coeff: 0.01
Regularizes the student attention to stay spread out (higher = flatter weights, lower = peakier). Increase when a few clients dominate too early; decrease to allow sharper selections.
n_trials_per_round: 4
Optuna trials per round to search teacher โalphaโ mixture. More trials can improve global eval but cost more server time (each trial triggers an evaluation). Use small values (2โ6) for quick runs; 8โ16 for thorough tuning.
perf_mix_lambda: 0.7
Mixes pk (post-val accuracy) and ck (improvement) into a single performance feature:
0.7*pk + 0.3*ckhere.Raise toward 1.0 to favor absolute strong performers; lower toward 0.0 to reward fast improvers.
z_clip: 3.0
After z-scoring features, clip to ยฑ3 to tame outliers and noisy metrics. If your metrics are clean, you can relax (e.g., 4โ5); if you see instability, tighten (2โ3).

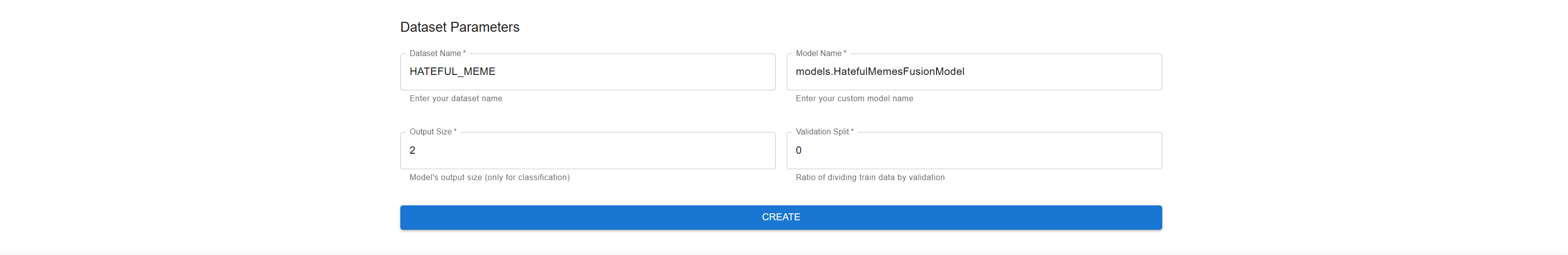

- Fill below details as it is. (Val split =0 because we have separate val set, so we donโt need to split val from training data)
.png)
๐กNow after task creation go to your cloned repoโs conf/config.yaml and update task id to the same task id you used when creating the task
3. Server Side Code Management
- Visit: https://ccl.gachon.ac.kr/fedops/task
- Select your task
- Go to Server Management

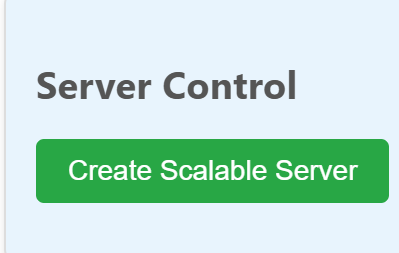

Press Below shown green button to create a Server pod in Fedops K8 Environment
.png)

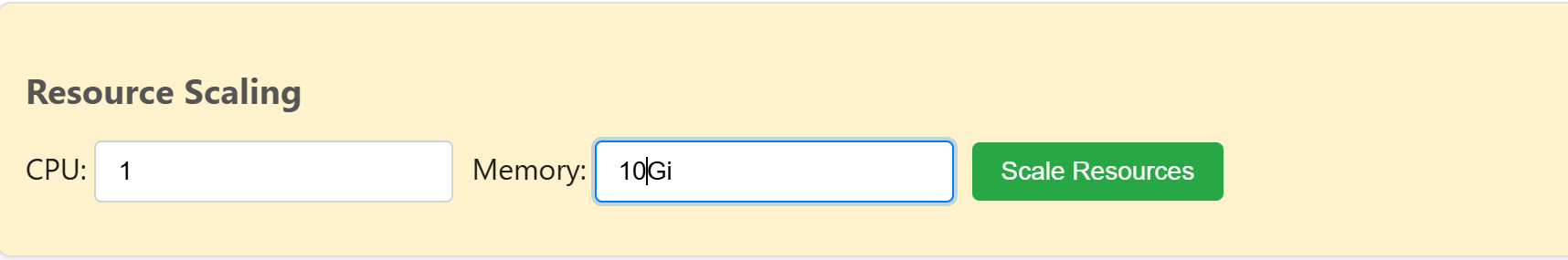

- Scale the Resources(memory): please do enter Scale Resources button after entering 10Gi as memory.
.png)

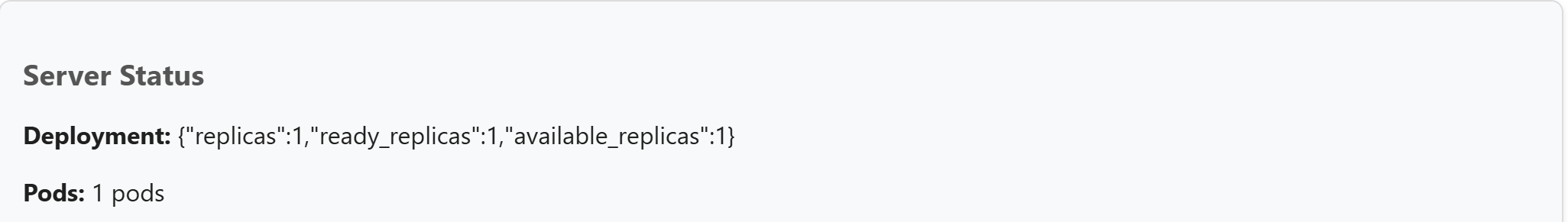

- Now check the server status through below picture. keep refreshing the status and wait until you see similar to this.
.png)

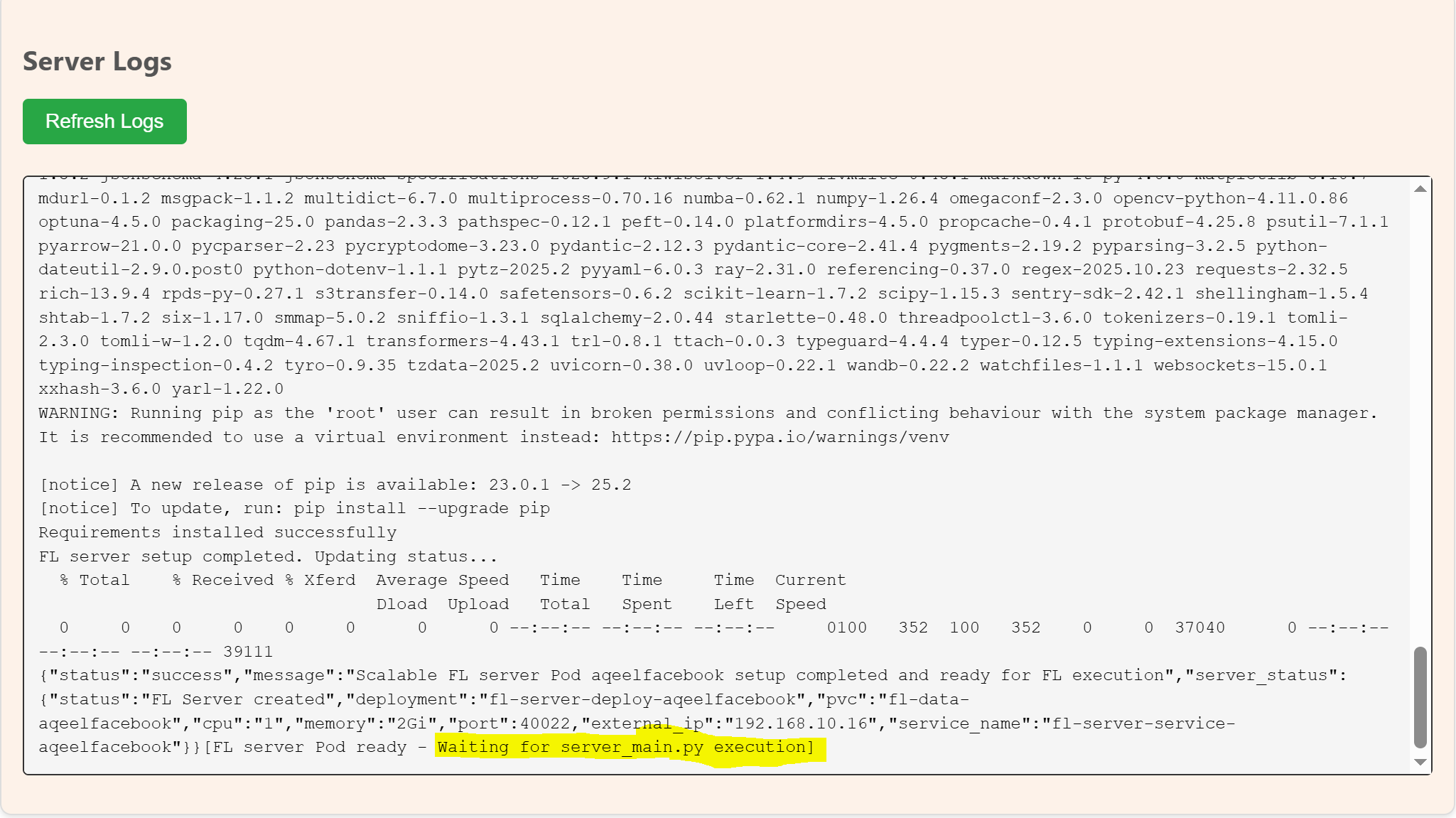

- Wait for around 6-7 mins until you see yellow colored log in Server log section below in same server management tab (shown in picture). Keep refreshing the logs to see real time log.
.png)
- Then, start editing server side files

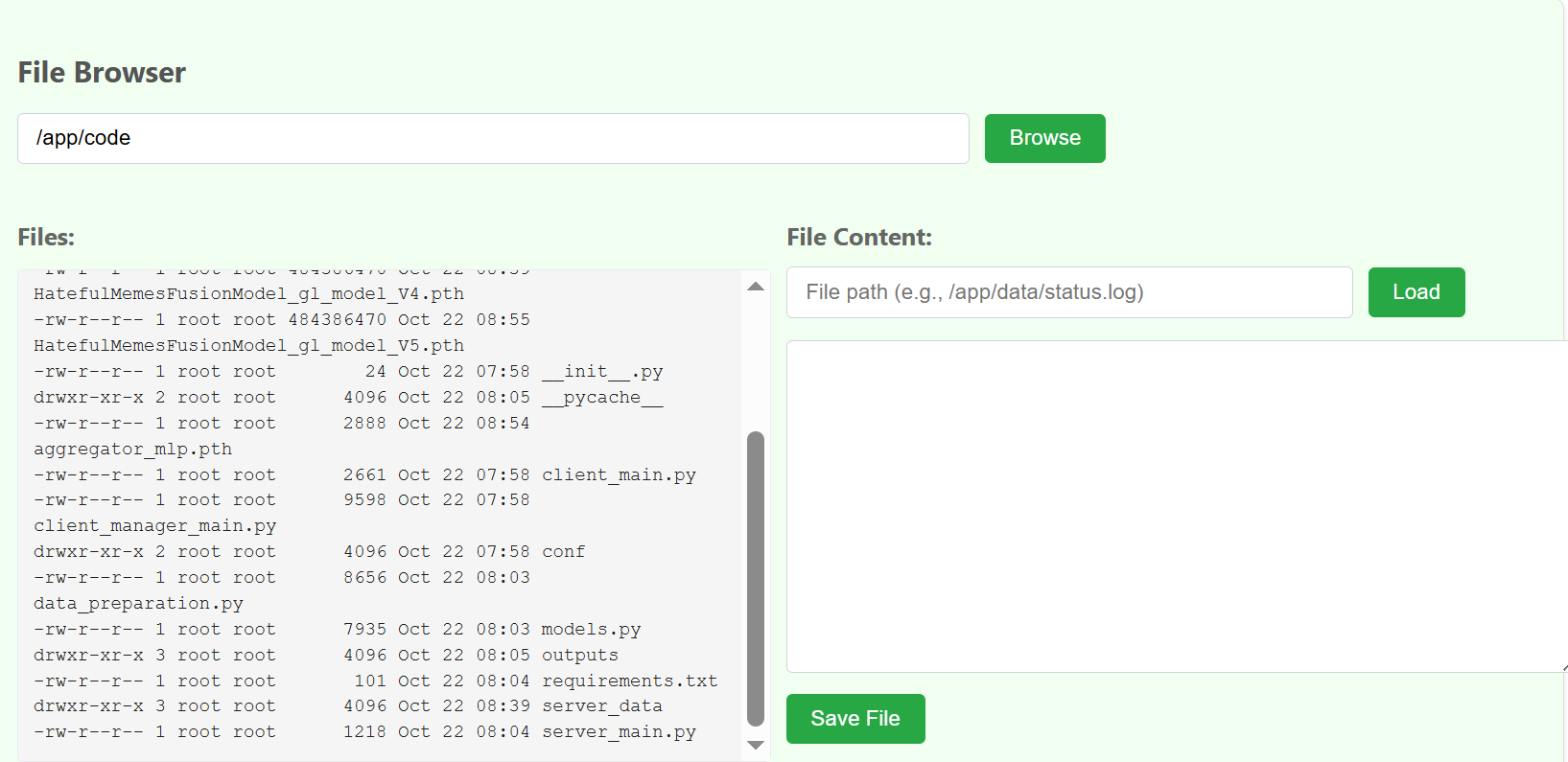

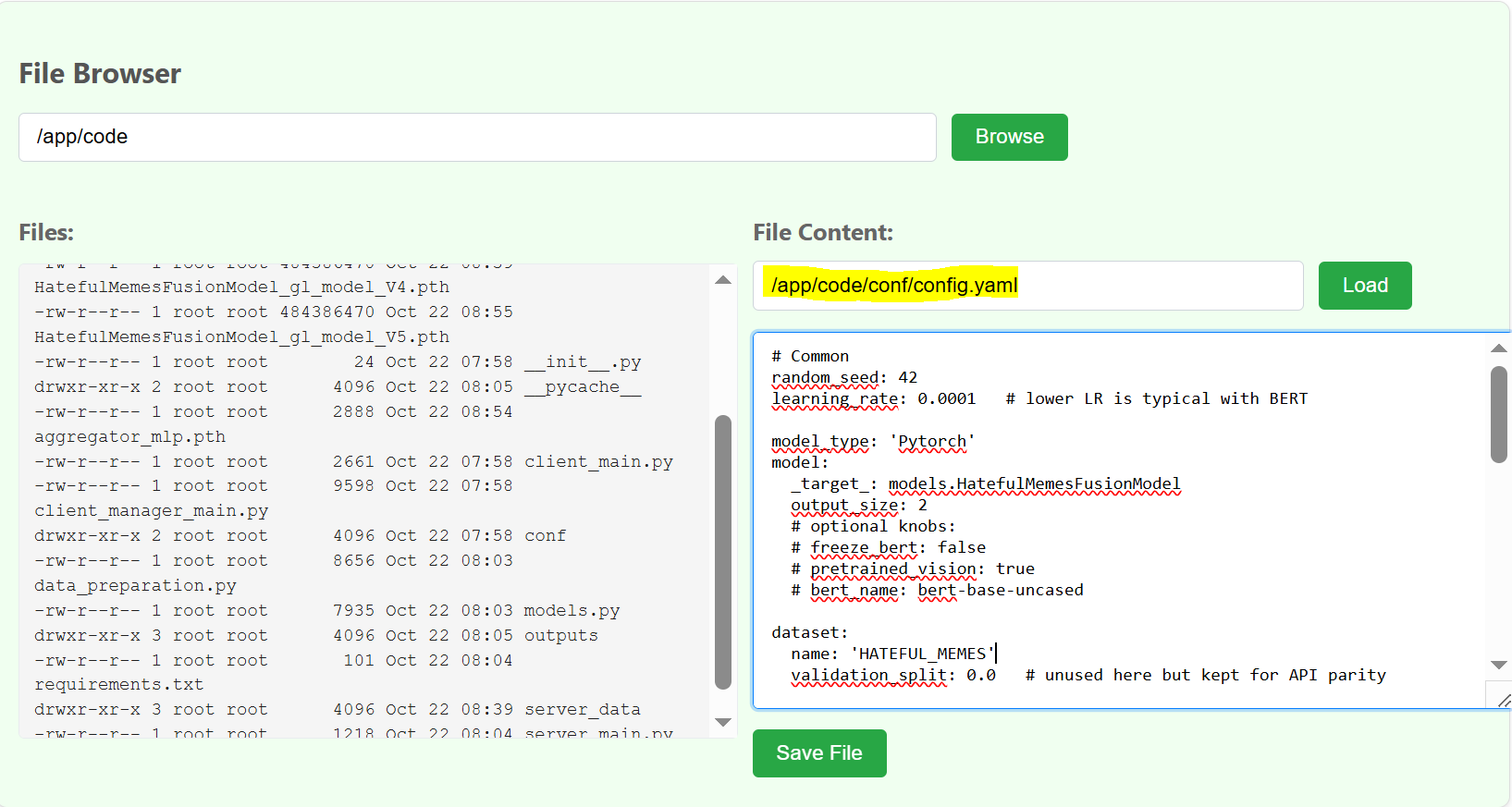

๐กYou can check server side files structure by typing file browser path as below and clicking browse button.
.png)
๐กPaste the file names with path in yellow colored text space โ Copy & paste the file content from cloned repo structure (multimodal/Usecases/Facebook_AI_benchmark folder) into code space โ Press save file button. Likewise this, do for each and every file path mentioned below.
.png)
filenames with path as follows:
- /app/code/server_main.py
- /app/code/models.py
- /app/code/data_preparation.py
- /usr/local/lib/python3.10/site-packages/fedops/server/app.py
- How to edit /usr/local/lib/python3.10/site-packages/fedops/server/app.py? see below. Since this file isnโt exist in downloaded repo, paste below code content into this file code.
# server/app.py
#FILE_PATH=/usr/local/lib/python3.10/site-packages/fedops/server/app.py
import logging
from typing import Dict, Optional, Tuple
import flwr as fl
import datetime
import os
import json
import time
import numpy as np
import shutil
from . import server_api
from . import server_utils
from collections import OrderedDict
from hydra.utils import instantiate
from flwr.common import ndarrays_to_parameters, parameters_to_ndarrays, NDArrays
from ..utils.fedco.best_keeper import BestKeeper
# TF warning log filtering
# os.environ["TF_CPP_MIN_LOG_LEVEL"] = "3"
logging.basicConfig(level=logging.DEBUG, format="%(asctime)s [%(levelname)8.8s] %(message)s",
handlers=[logging.StreamHandler()])
logger = logging.getLogger(__name__)
class FLServer():
def __init__(self, cfg, model, model_name, model_type, gl_val_loader=None, x_val=None, y_val=None, test_torch=None):
self.task_id = os.environ.get('TASK_ID') # Set FL Task ID
self.server = server_utils.FLServerStatus() # Set FLServerStatus class
self.model_type = model_type
self.cfg = cfg
self.strategy = cfg.server.strategy
self.batch_size = int(cfg.batch_size)
self.local_epochs = int(cfg.num_epochs)
self.num_rounds = int(cfg.num_rounds)
self.init_model = model
self.init_model_name = model_name
self.next_model = None
self.next_model_name = None
# Will be set in fl_server_start for Pytorch
self._server_keys = None
if self.model_type == "Tensorflow":
self.x_val = x_val
self.y_val = y_val
elif self.model_type == "Pytorch":
self.gl_val_loader = gl_val_loader
self.test_torch = test_torch
elif self.model_type == "Huggingface":
pass
# ====== ํด๋ฌ์คํฐ ์ ๋ต ์ฌ๋ถ/๋ฉํธ๋ฆญ ํค ๊ฒฐ์ (๋นํด๋ฌ์คํฐ๋ ์ํฅ ์์) ======
try:
strat_target = str(self.strategy._target_)
except Exception:
strat_target = ""
self.is_cluster = "server.strategy_cluster_optuna.ClusterOptunaFedAvg" in strat_target
metric_key = "accuracy"
if self.is_cluster:
# yaml: server.strategy.objective -> maximize_f1 | maximize_acc | minimize_loss
try:
objective = str(getattr(self.strategy, "objective", "")).lower()
except Exception:
objective = ""
if "maximize_f1" in objective:
metric_key = "val_f1_score"
elif "minimize_loss" in objective:
metric_key = "val_loss"
else:
metric_key = "accuracy"
# ํด๋ฌ์คํฐ์ผ ๋๋ง BestKeeper ํ์ฑํ
self.best_keeper = BestKeeper(save_dir="./gl_best", metric_key=metric_key) if self.is_cluster else None
# ===============================================================
def init_gl_model_registration(self, model, gl_model_name) -> None:
logging.info(f'last_gl_model_v: {self.server.last_gl_model_v}')
if not model:
logging.info('init global model making')
init_model, model_name = self.init_model, self.init_model_name
print(f'init_gl_model_name: {model_name}')
self.fl_server_start(init_model, model_name)
return model_name
else:
logging.info('load last global model')
print(f'last_gl_model_name: {gl_model_name}')
self.fl_server_start(model, gl_model_name)
return gl_model_name
def fl_server_start(self, model, model_name):
# Load and compile model for
# 1. server-side parameter initialization
# 2. server-side parameter evaluation
model_parameters = None # Init model_parameters variable
if self.model_type == "Tensorflow":
model_parameters = model.get_weights()
elif self.model_type == "Pytorch":
# Use ONE deterministic order of keys, shared everywhere
self._server_keys = sorted(model.state_dict().keys())
model_parameters = [model.state_dict()[k].detach().cpu().numpy() for k in self._server_keys]
# Debug a few shapes (safe to keep or remove)
try:
for k, a in list(zip(self._server_keys, model_parameters))[:10]:
print("[SERVER:init] ", k, np.shape(a))
except Exception:
pass
elif self.model_type == "Huggingface":
json_path = "./parameter_shapes.json"
model_parameters = server_utils.load_initial_parameters_from_shape(json_path)
strategy = instantiate(
self.strategy,
initial_parameters=fl.common.ndarrays_to_parameters(model_parameters),
evaluate_fn=self.get_eval_fn(model, model_name),
on_fit_config_fn=self.fit_config,
on_evaluate_config_fn=self.evaluate_config,
)
# Start Flower server
fl.server.start_server(
server_address="0.0.0.0:8080",
config=fl.server.ServerConfig(num_rounds=self.num_rounds),
strategy=strategy,
)
# ===== ํ์ต ์ข
๋ฃ ํ: (ํด๋ฌ์คํฐ ์ ๋ต์ผ ๋๋ง) ์ต๊ณ ์ ์ญ๋ชจ๋ธ๋ก ์ต์ข
ํ์ผ ๋ฎ์ด์ฐ๊ธฐ =====
if self.is_cluster and self.best_keeper is not None:
try:
best_params = self.best_keeper.load_params()
if best_params is not None:
gl_model_path = f'./{model_name}_gl_model_V{self.server.gl_model_v}'
if self.model_type == "Pytorch":
import torch
best_nds = parameters_to_ndarrays(best_params)
keys = self._server_keys or sorted(model.state_dict().keys())
assert len(keys) == len(best_nds), f"[BEST] mismatch: {len(keys)} keys vs {len(best_nds)} arrays"
state_dict = OrderedDict((k, torch.tensor(v)) for k, v in zip(keys, best_nds))
model.load_state_dict(state_dict, strict=True)
torch.save(model.state_dict(), gl_model_path + '.pth')
logger.info("[BEST] Saved best global model to %s.pth", gl_model_path)
# (์ ํ) ์ค์ ๊ฒ์ฆ ๋ก๊ทธ
try:
loss_b, acc_b, met_b = self.test_torch(model, self.gl_val_loader, self.cfg)
logger.info(f"[FINAL-BEST] loss={loss_b:.4f}, acc={acc_b:.6f}, extra={met_b}")
except Exception:
pass
elif self.model_type == "Tensorflow":
best_nds = parameters_to_ndarrays(best_params)
model.set_weights(best_nds)
model.save(gl_model_path + '.h5')
logger.info("[BEST] Saved best global model to %s.h5", gl_model_path)
# (์ ํ) ์ค์ ๊ฒ์ฆ ๋ก๊ทธ
try:
loss_b, acc_b = model.evaluate(self.x_val, self.y_val, verbose=0)
logger.info(f"[FINAL-BEST] loss={loss_b:.4f}, acc={acc_b:.6f}")
except Exception:
pass
elif self.model_type == "Huggingface":
logger.info("[BEST] (HF) finalization skipped")
except Exception as e:
logger.error(f"[BEST] finalization error: {e}")
def get_eval_fn(self, model, model_name):
"""Return an evaluation function for server-side evaluation."""
def evaluate(
server_round: int,
parameters_ndarrays: fl.common.NDArrays,
config: Dict[str, fl.common.Scalar],
) -> Optional[Tuple[float, Dict[str, fl.common.Scalar]]]:
# model path for saving global model snapshot by round
gl_model_path = f'./{model_name}_gl_model_V{self.server.gl_model_v}'
metrics = None
if self.model_type == "Tensorflow":
model.set_weights(parameters_ndarrays)
loss, accuracy = model.evaluate(self.x_val, self.y_val, verbose=0)
model.save(gl_model_path + '.h5')
elif self.model_type == "Pytorch":
import torch
# Use the exact same deterministic order as initialization
keys = self._server_keys or sorted(model.state_dict().keys())
assert len(keys) == len(parameters_ndarrays), \
f"server mismatch: {len(keys)} keys vs {len(parameters_ndarrays)} arrays"
# Optional: quick debug of first few shapes
try:
for k, a in list(zip(keys, parameters_ndarrays))[:10]:
print("[SERVER:evaluate] ", k, np.shape(a))
except Exception:
pass
state_dict = OrderedDict((k, torch.tensor(v)) for k, v in zip(keys, parameters_ndarrays))
model.load_state_dict(state_dict, strict=True)
loss, accuracy, metrics = self.test_torch(model, self.gl_val_loader, self.cfg)
torch.save(model.state_dict(), gl_model_path + '.pth')
elif self.model_type == "Huggingface":
logging.warning("Skipping evaluation for Huggingface model")
loss, accuracy = 0.0, 0.0
os.makedirs(gl_model_path, exist_ok=True)
np.savez(os.path.join(gl_model_path, "adapter_parameters.npz"), *parameters_ndarrays)
# === ๋ผ์ด๋๋ณ ๋ก๊ทธ/๋ฆฌํฌํ
(์๋ ๋ก์ง ์ ์ง) ===
if self.server.round >= 1:
self.server.end_by_round = time.time() - self.server.start_by_round
if metrics is not None:
server_eval_result = {
"fl_task_id": self.task_id,
"round": self.server.round,
"gl_loss": loss,
"gl_accuracy": accuracy,
"run_time_by_round": self.server.end_by_round,
**metrics,
"gl_model_v": self.server.gl_model_v,
}
else:
server_eval_result = {
"fl_task_id": self.task_id,
"round": self.server.round,
"gl_loss": loss,
"gl_accuracy": accuracy,
"run_time_by_round": self.server.end_by_round,
"gl_model_v": self.server.gl_model_v,
}
json_server_eval = json.dumps(server_eval_result)
logging.info(f'server_eval_result - {json_server_eval}')
server_api.ServerAPI(self.task_id).put_gl_model_evaluation(json_server_eval)
# === (ํด๋ฌ์คํฐ ์ ๋ต์ผ ๋๋ง) BestKeeper ๊ฐฑ์ ===
if self.is_cluster and self.best_keeper is not None:
merged_metrics = {"accuracy": accuracy}
if metrics is not None:
merged_metrics.update(metrics)
try:
self.best_keeper.update(
server_round=server_round,
parameters=ndarrays_to_parameters(parameters_ndarrays),
metrics=merged_metrics,
)
except Exception as e:
logger.warning(f"[BEST] update skipped: {e}")
if metrics is not None:
return loss, {"accuracy": accuracy, **metrics}
else:
return loss, {"accuracy": accuracy}
return evaluate
def fit_config(self, rnd: int):
"""Return training configuration dict for each round."""
fl_config = {
"batch_size": self.batch_size,
"local_epochs": self.local_epochs,
"num_rounds": self.num_rounds,
}
# For PyTorch, include the exact server key order so clients can zip arrays correctly
if self.model_type == "Pytorch":
if self._server_keys is None and hasattr(self, "init_model") and self.init_model is not None:
self._server_keys = sorted(self.init_model.state_dict().keys())
try:
fl_config["param_keys_json"] = json.dumps(self._server_keys)
except Exception:
pass
# increase round
self.server.round += 1
# fit aggregation start time
self.server.start_by_round = time.time()
logging.info('server start by round')
return fl_config
def evaluate_config(self, rnd: int):
"""Return evaluation configuration dict for each round."""
return {"batch_size": self.batch_size}
def start(self):
today_time = datetime.datetime.today().strftime('%Y-%m-%d %H-%M-%S')
# Loaded last global model or no global model in s3
self.next_model, self.next_model_name, self.server.last_gl_model_v = server_utils.model_download_s3(
self.task_id, self.model_type, self.init_model
)
# New Global Model Version
self.server.gl_model_v = self.server.last_gl_model_v + 1
# API that sends server status to server manager
inform_Payload = {
"S3_bucket": "fl-gl-model",
"Last_GL_Model": "gl_model_%s_V.h5" % self.server.last_gl_model_v,
"FLServer_start": today_time,
"FLSeReady": True,
"GL_Model_V": self.server.gl_model_v,
}
server_status_json = json.dumps(inform_Payload)
server_api.ServerAPI(self.task_id).put_server_status(server_status_json)
try:
fl_start_time = time.time()
# Run fl server
gl_model_name = self.init_gl_model_registration(self.next_model, self.next_model_name)
fl_end_time = time.time() - fl_start_time # FL end time
server_all_time_result = {"fl_task_id": self.task_id, "server_operation_time": fl_end_time,
"gl_model_v": self.server.gl_model_v}
json_all_time_result = json.dumps(server_all_time_result)
logging.info(f'server_operation_time - {json_all_time_result}')
# Send server time result to performance pod
server_api.ServerAPI(self.task_id).put_server_time_result(json_all_time_result)
# upload global model (์ต์ข
ํ์ผ์ ๋นํด๋ฌ์คํฐ๋ ์๋ ํ์ผ, ํด๋ฌ์คํฐ๋ BEST๋ก ๋ฎ์ด์ด ํ์ผ)
if self.model_type == "Tensorflow":
global_model_file_name = f"{gl_model_name}_gl_model_V{self.server.gl_model_v}.h5"
server_utils.upload_model_to_bucket(self.task_id, global_model_file_name)
elif self.model_type == "Pytorch":
global_model_file_name = f"{gl_model_name}_gl_model_V{self.server.gl_model_v}.pth"
server_utils.upload_model_to_bucket(self.task_id, global_model_file_name)
elif self.model_type == "Huggingface":
global_model_file_name = f"{gl_model_name}_gl_model_V{self.server.gl_model_v}"
npz_file_path = f"{global_model_file_name}.npz"
model_dir = f"{global_model_file_name}"
real_npz_path = os.path.join(model_dir, "adapter_parameters.npz")
shutil.copy(real_npz_path, npz_file_path)
server_utils.upload_model_to_bucket(self.task_id, npz_file_path)
logging.info(f'upload {global_model_file_name} model in s3')
# server_status error
except Exception as e:
logging.error("error: %s", e)
data_inform = {'FLSeReady': False}
server_api.ServerAPI(self.task_id).put_server_status(json.dumps(data_inform))
finally:
logging.info('server close')
# Modifying the model version in server manager
server_api.ServerAPI(self.task_id).put_fl_round_fin()
logging.info('global model version upgrade')
- Install below dependency as below by pressing execute:
.png)
๐ง 4. Start the FL Server
Start the actual server:

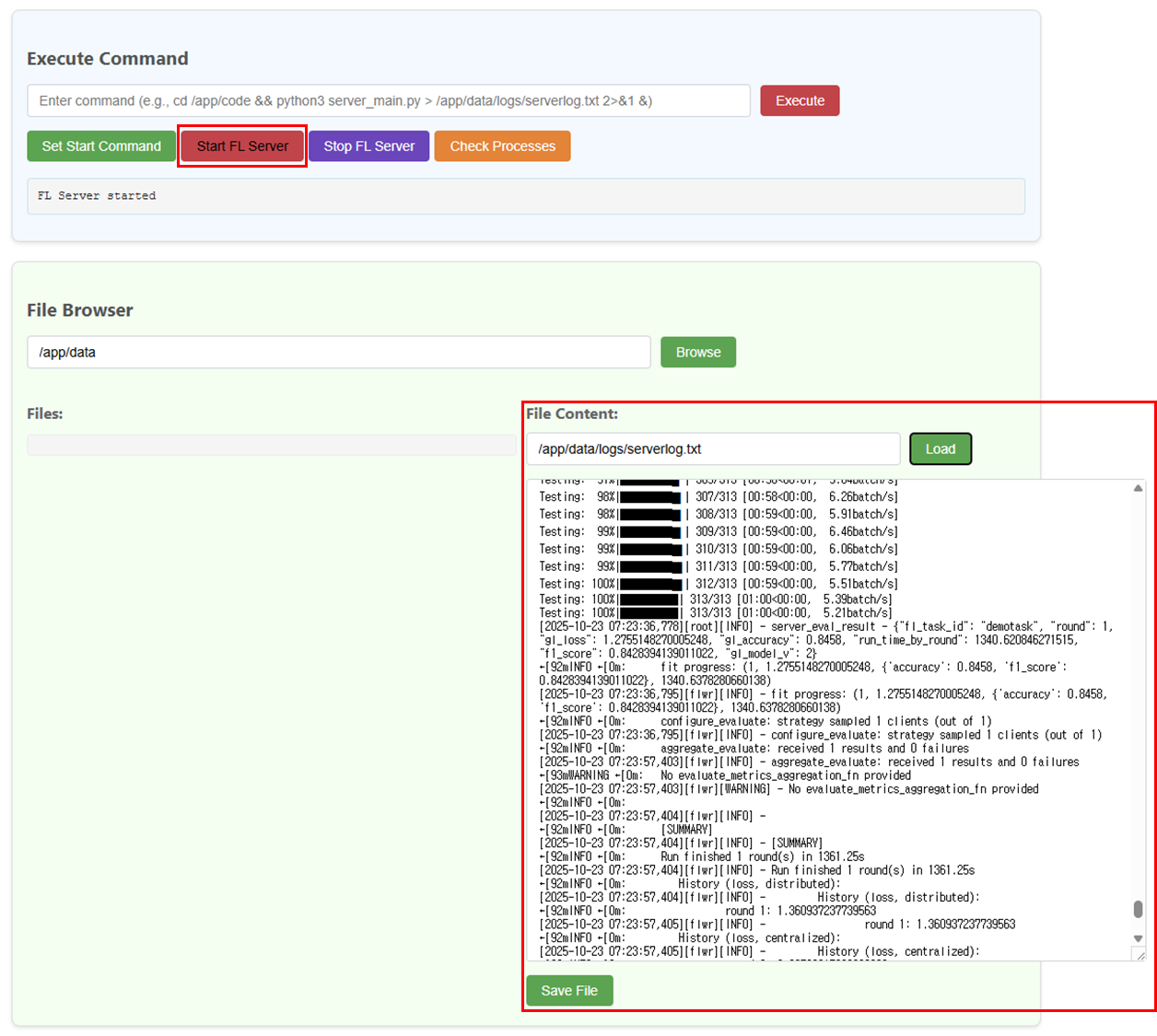

๐กClick Start FL Server button to prepare the command to run the FL server. you can then see log below says FL server created.
.png)
๐กYou must type /app/data/logs/serverlog.txt in File content field and press load button to see real time server side logs, and monitor server side FL global model training process.
๐กYou can stop the server by โstop FL serverโ button ,if you want to stop the server in middle.
๐ง 5. Run Client & Manager Scripts
Start the actual client:
python client_main.py
Start the client manager (handles communication with FedOps server):
python client_manager_main.py
๐ก You can run both scripts simultaneously in separate terminals.
๐ 6. Monitor Your Task
Use the following tabs to track progress:
- Monitoring โ Client training status
- Global Model โ View updates to the central global model
- Server Management โ Admin controls and logs related to the central server connection
After Successfully finishing FL rounds, donโt forget to execute below command again in your local client side . (Reason: since we modified client/app.py and client/client_fl.py for this setup. By doing pip install again it will bring those two files into original code )
pip install fedops
